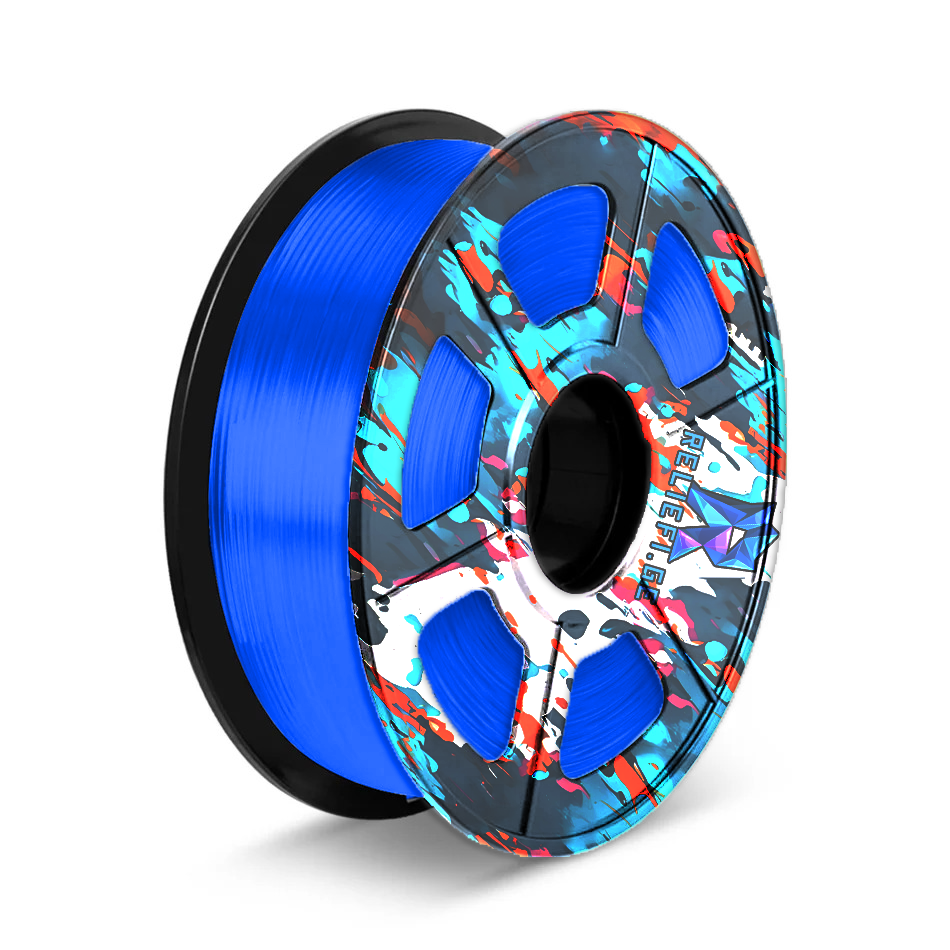

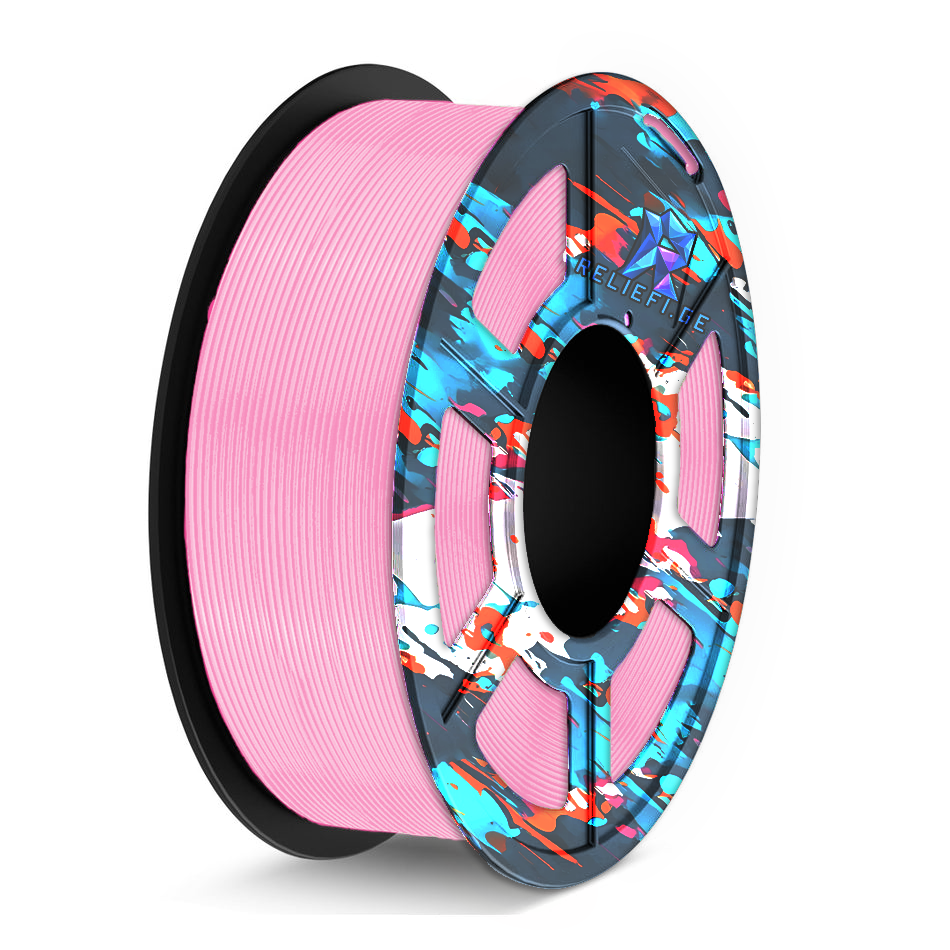

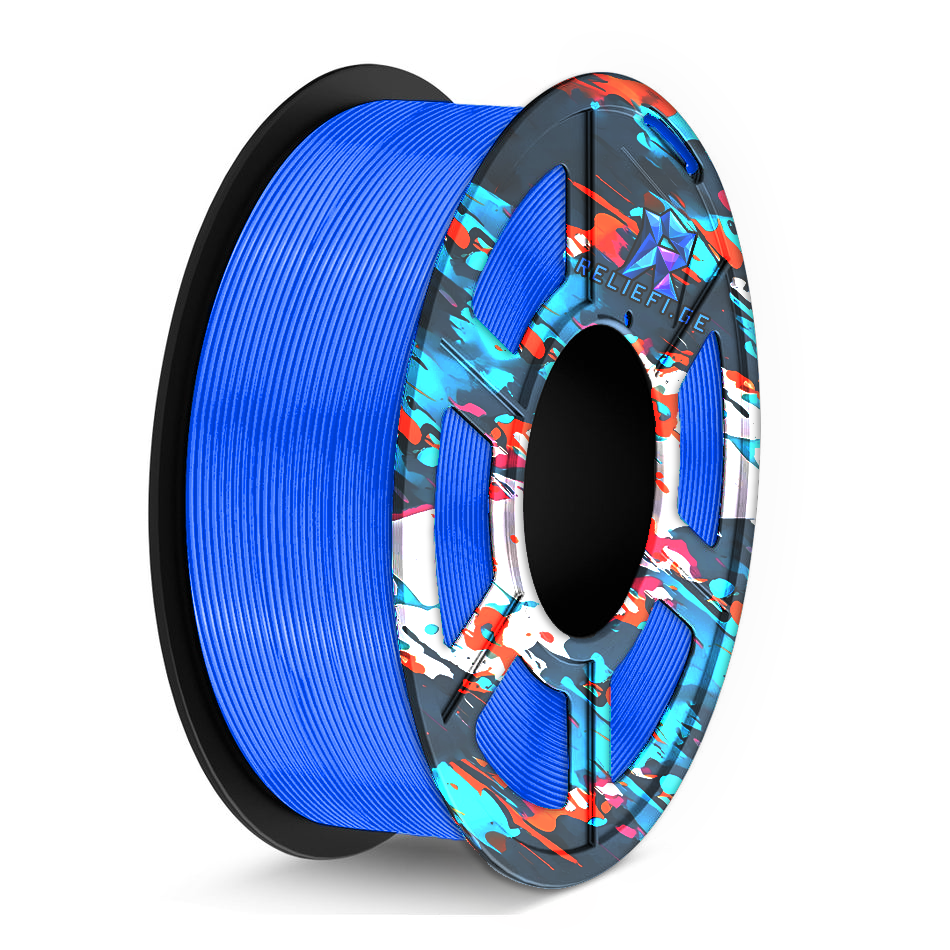

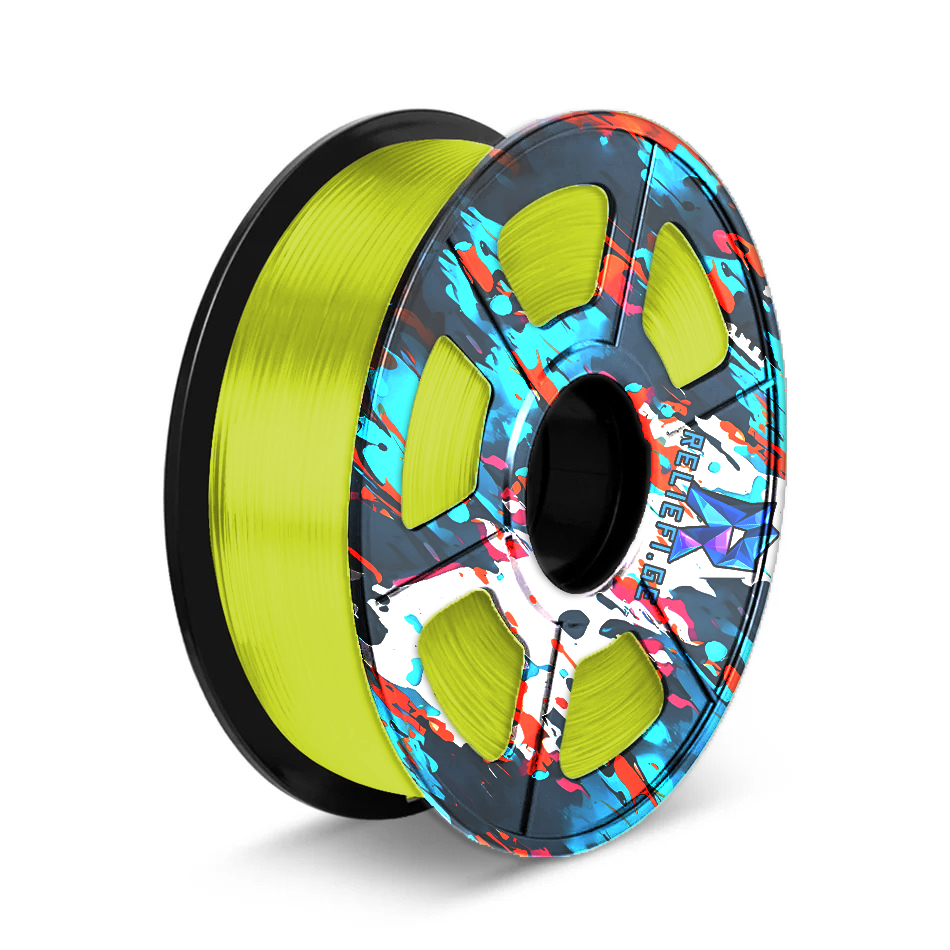

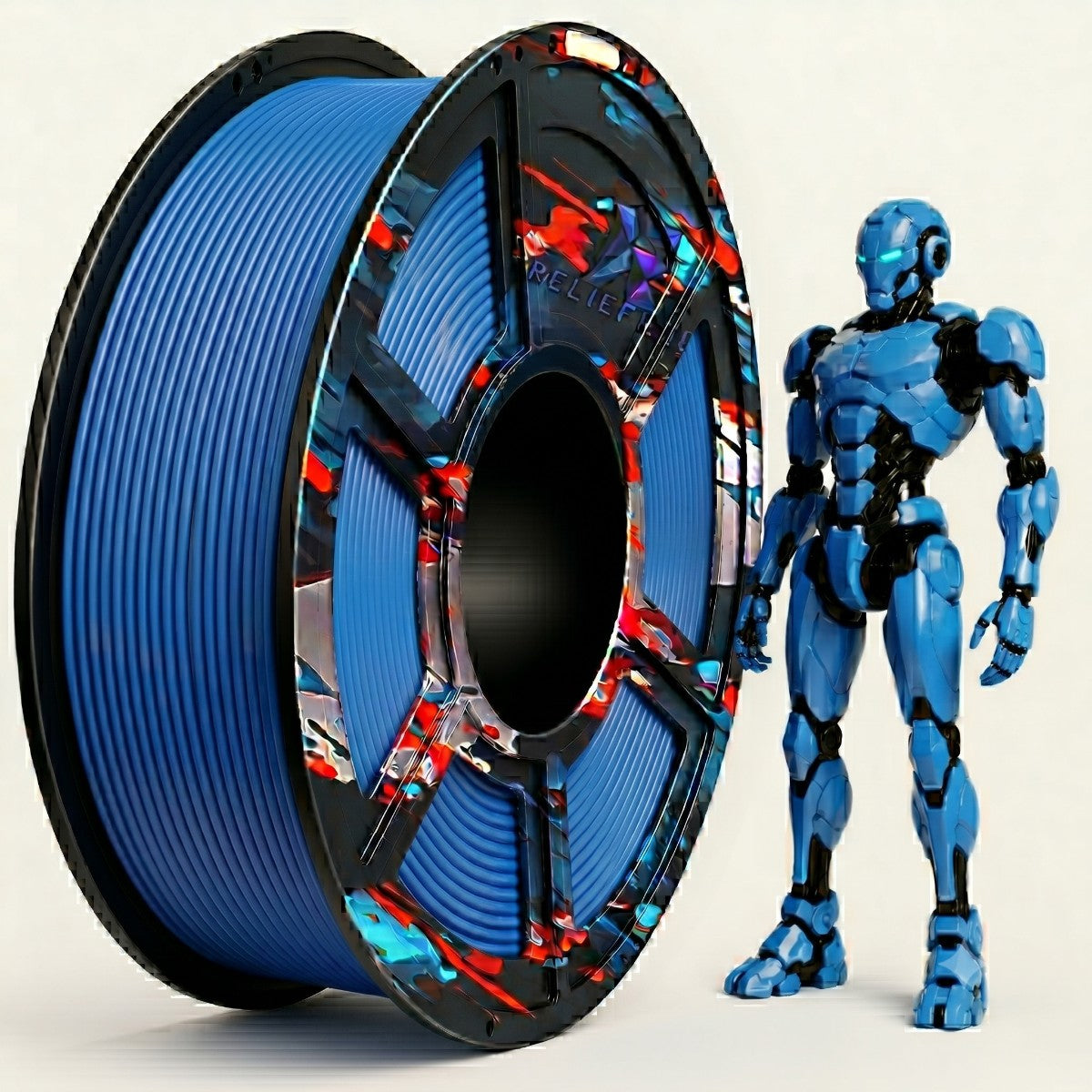

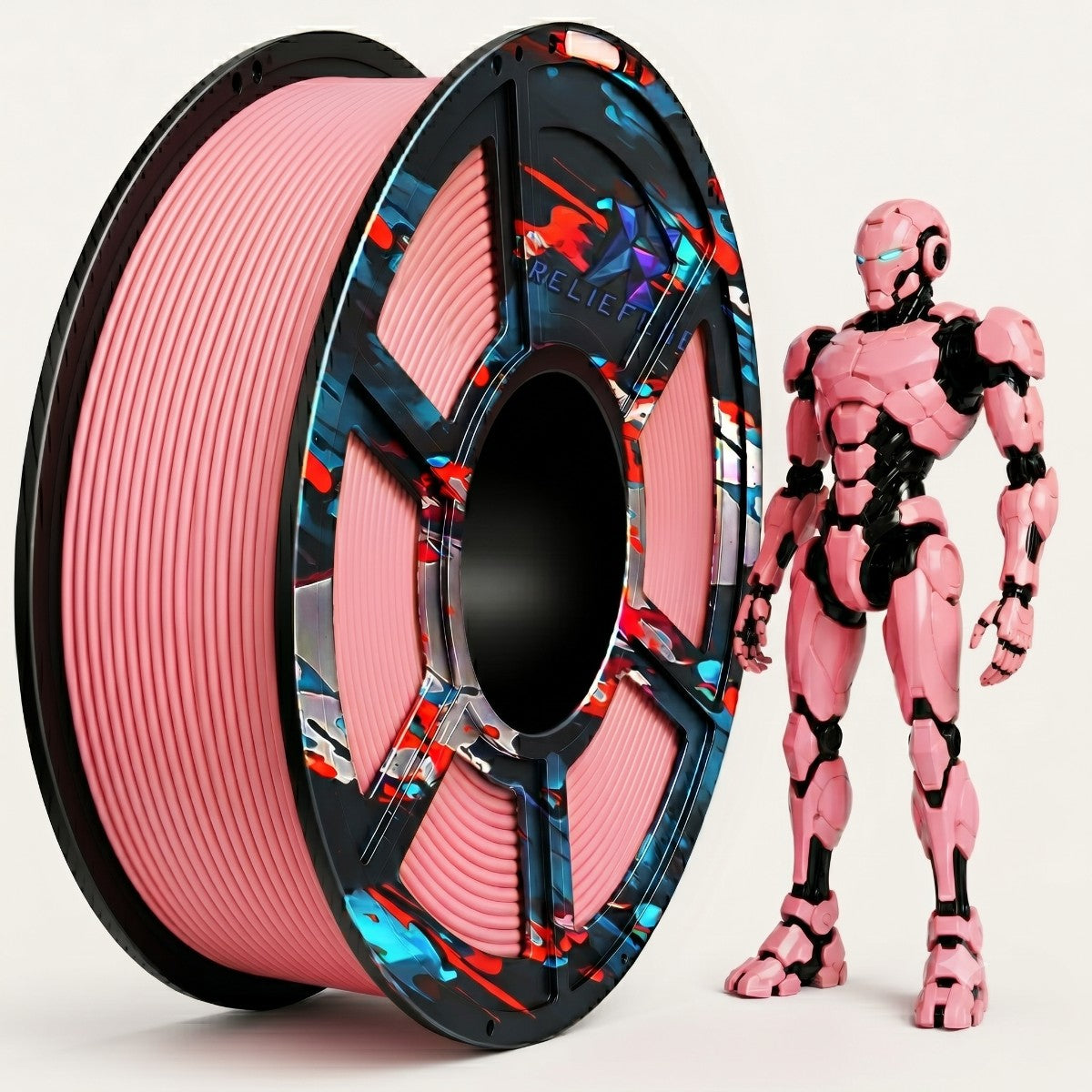

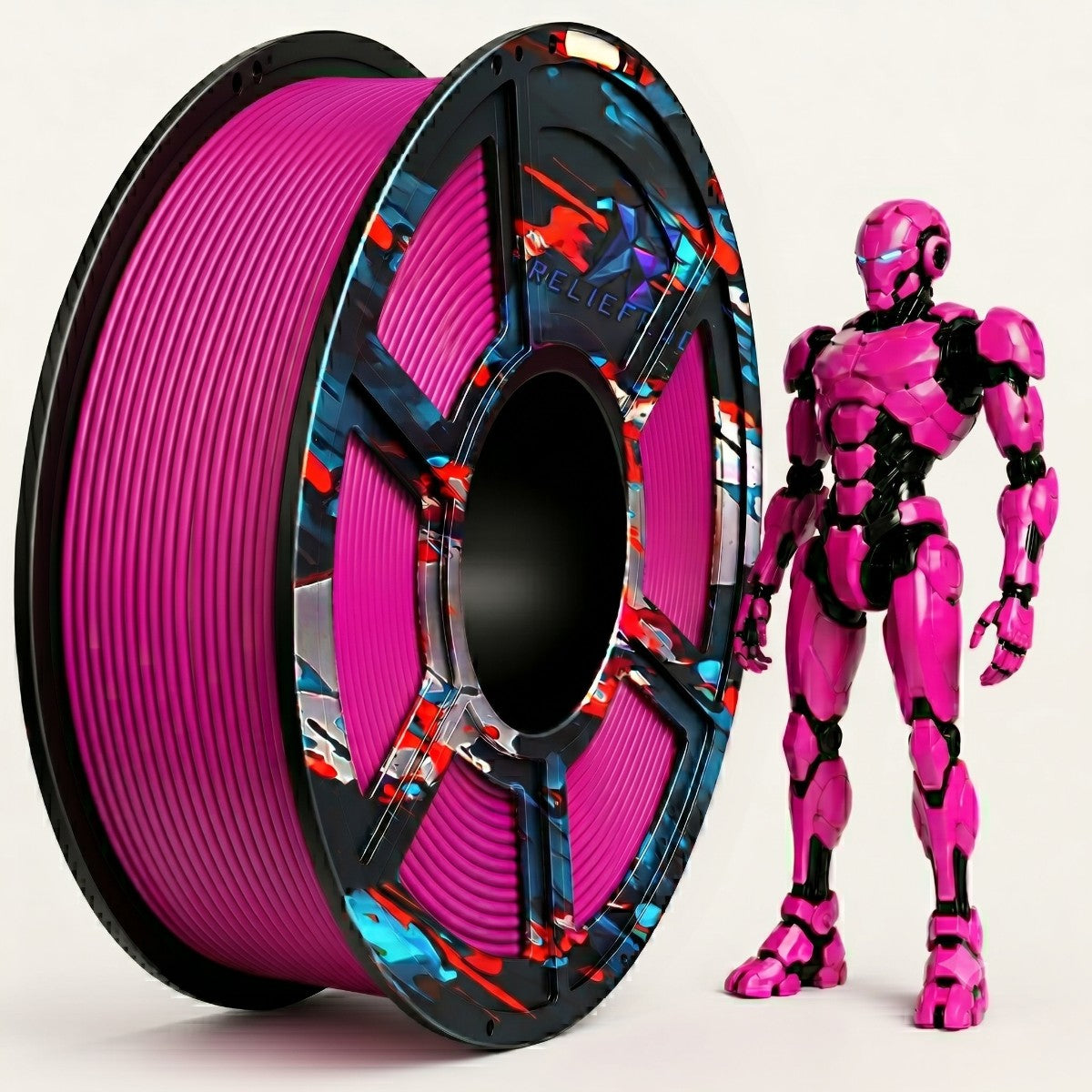

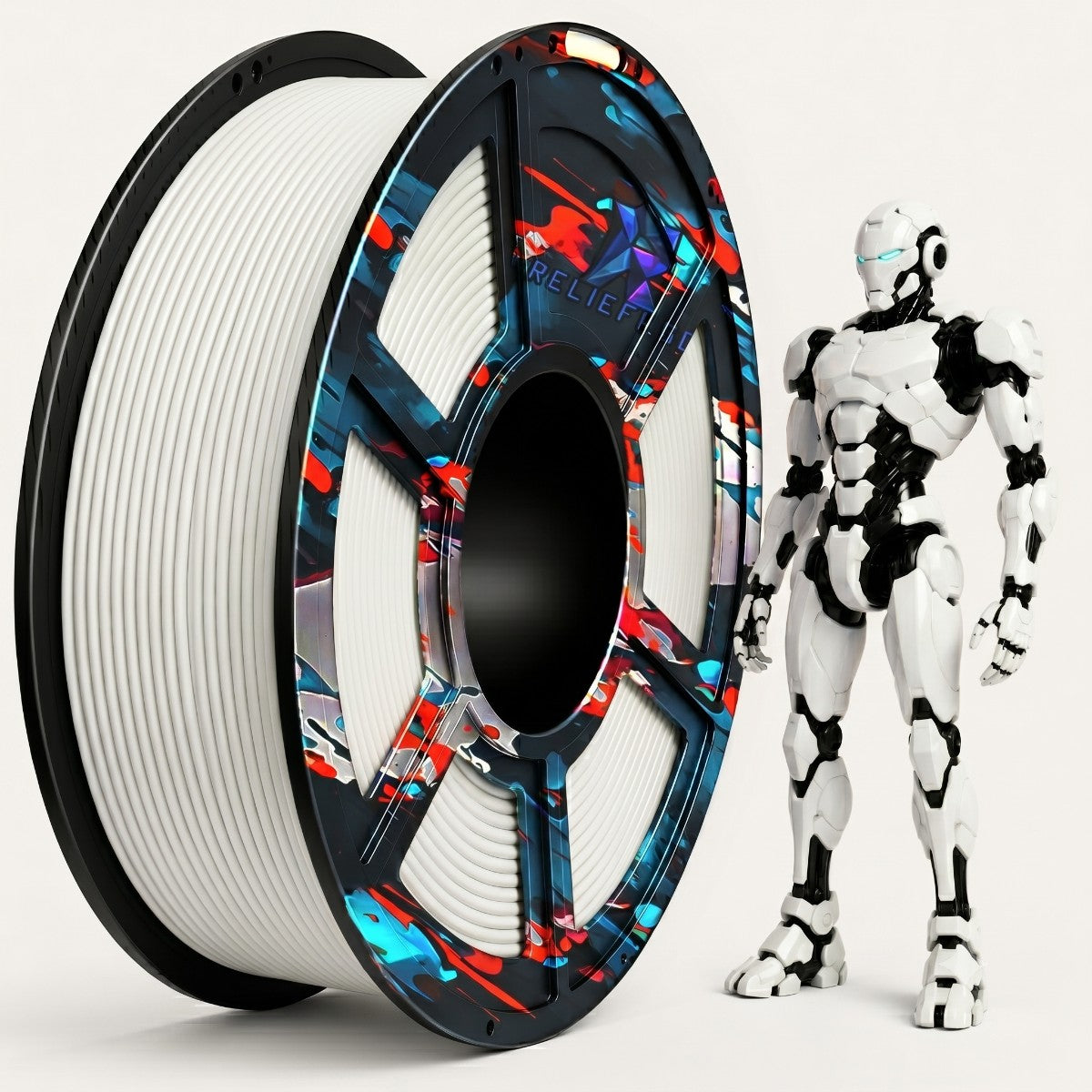

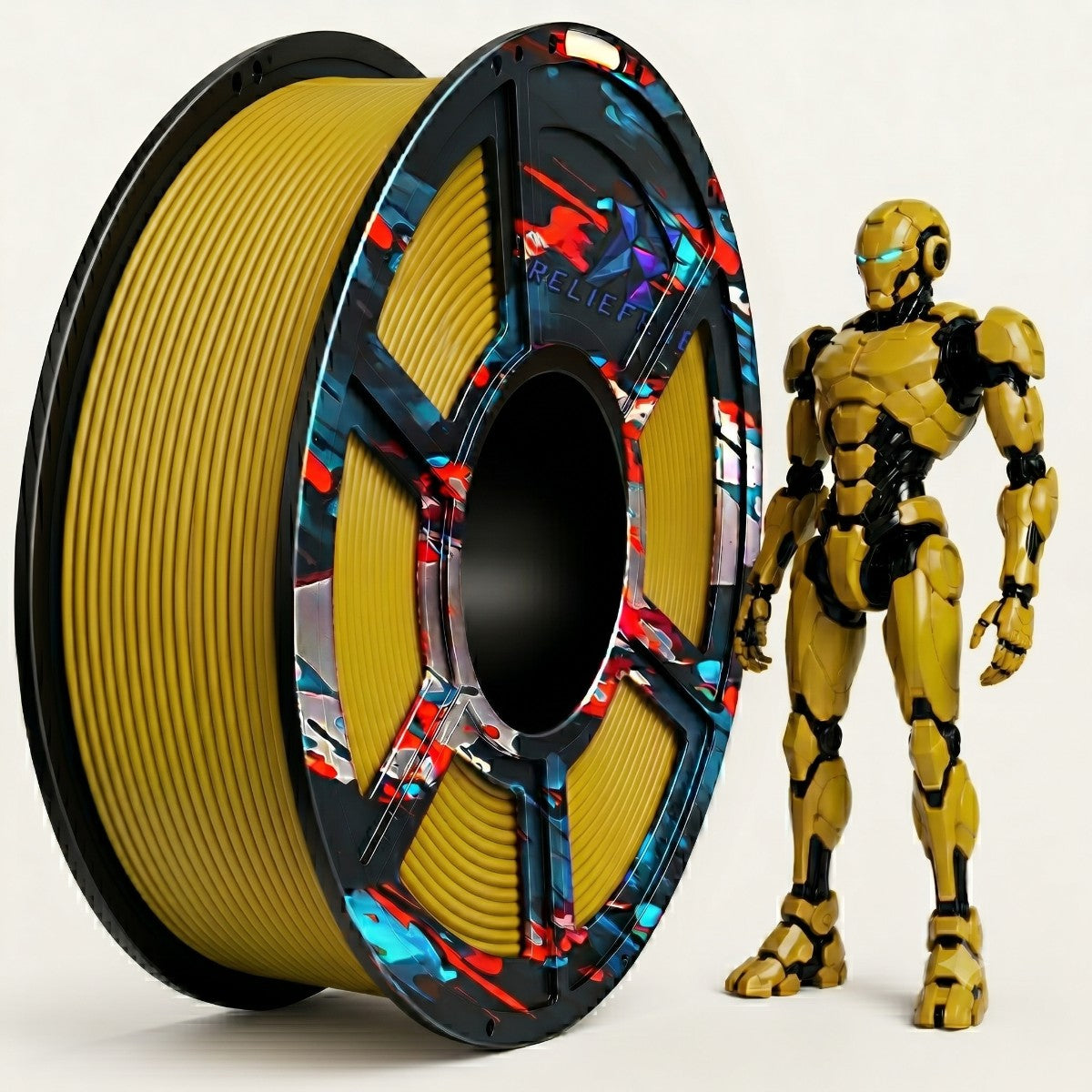

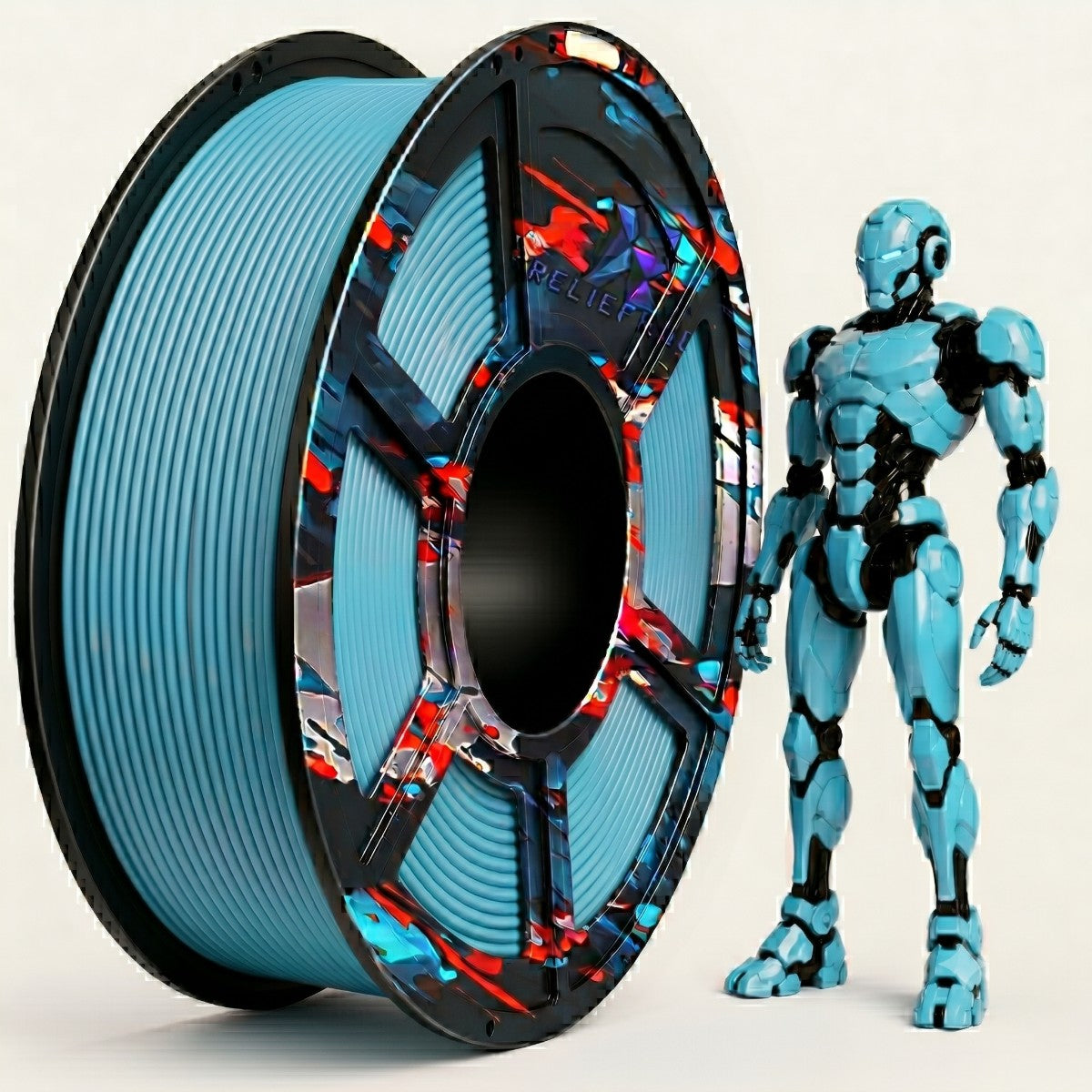

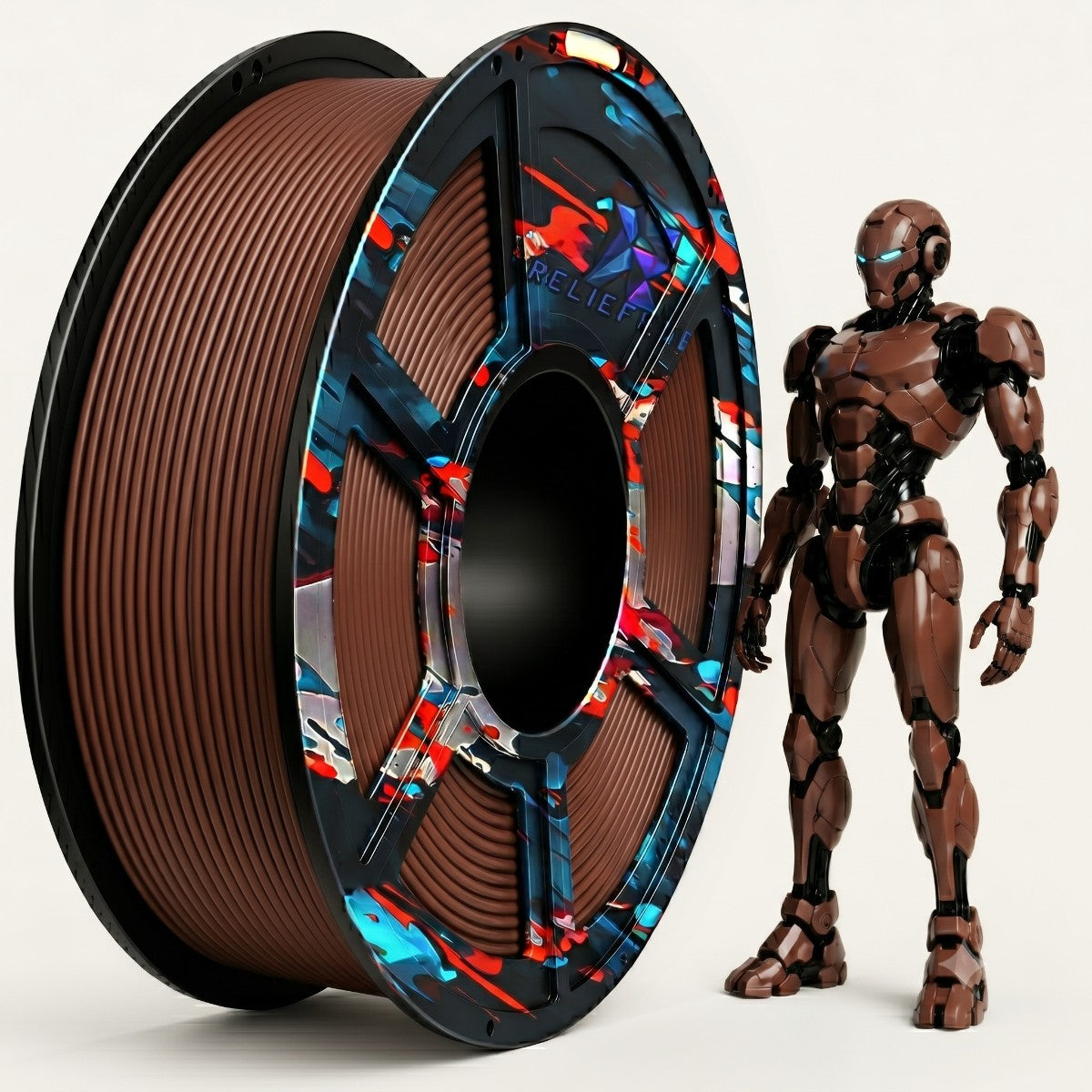

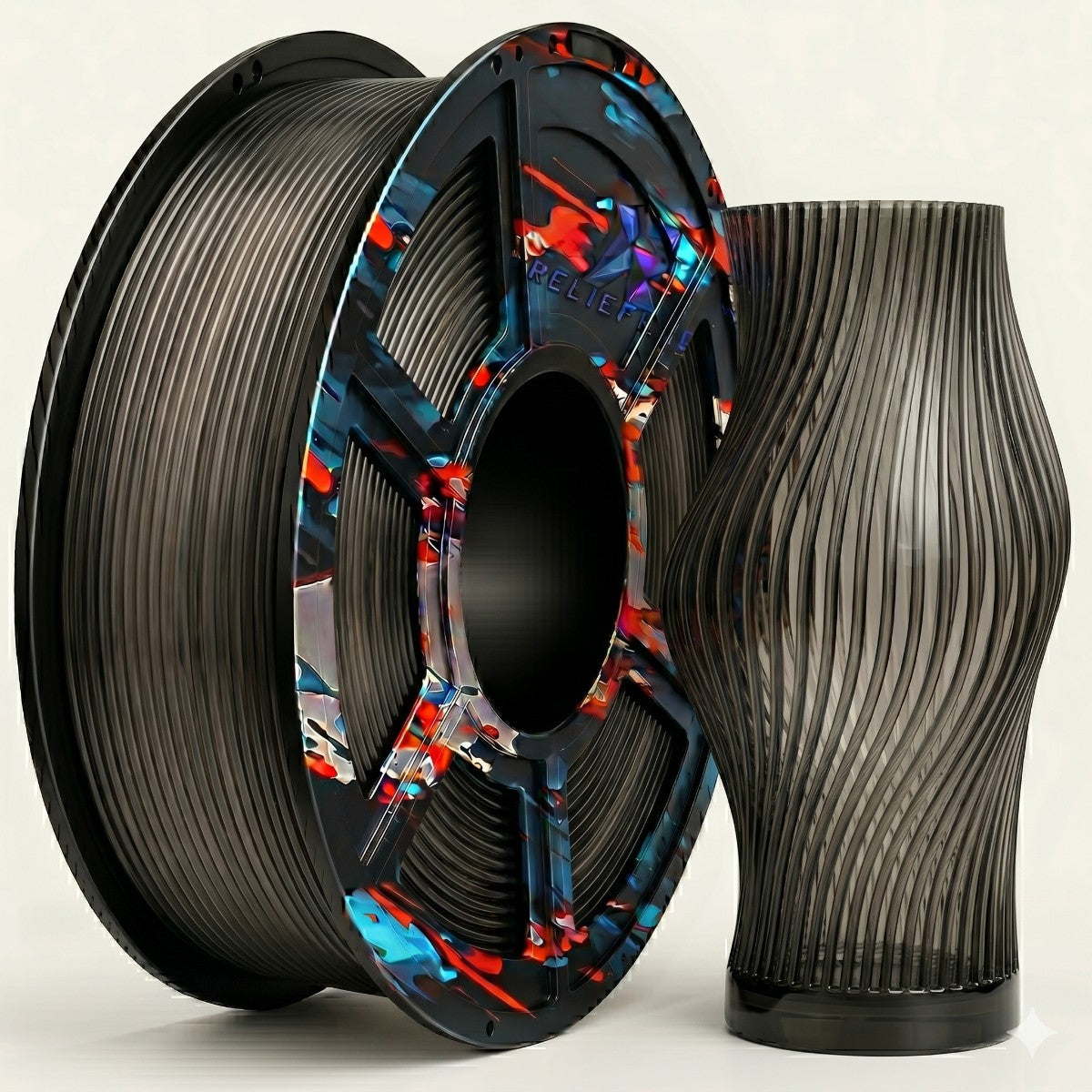

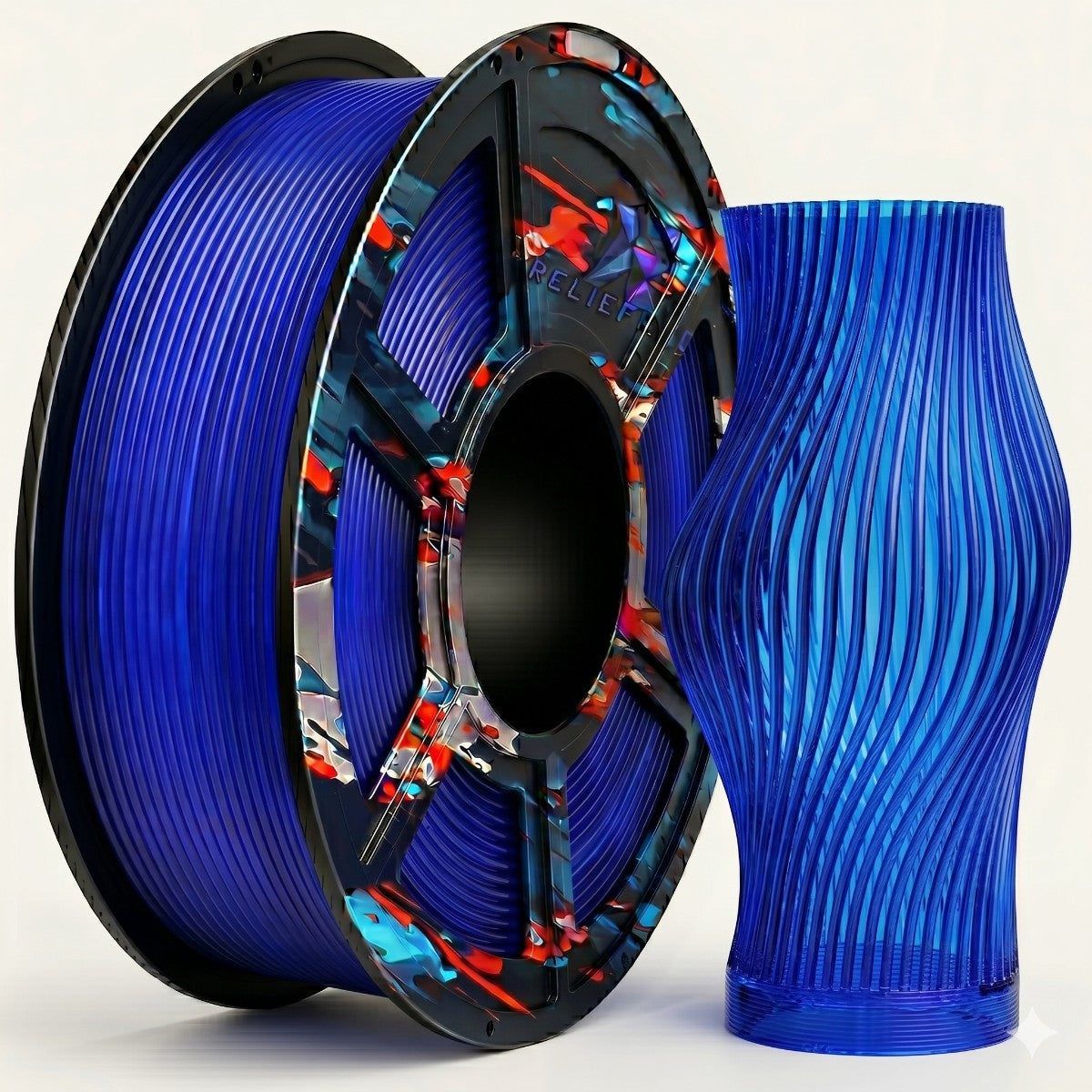

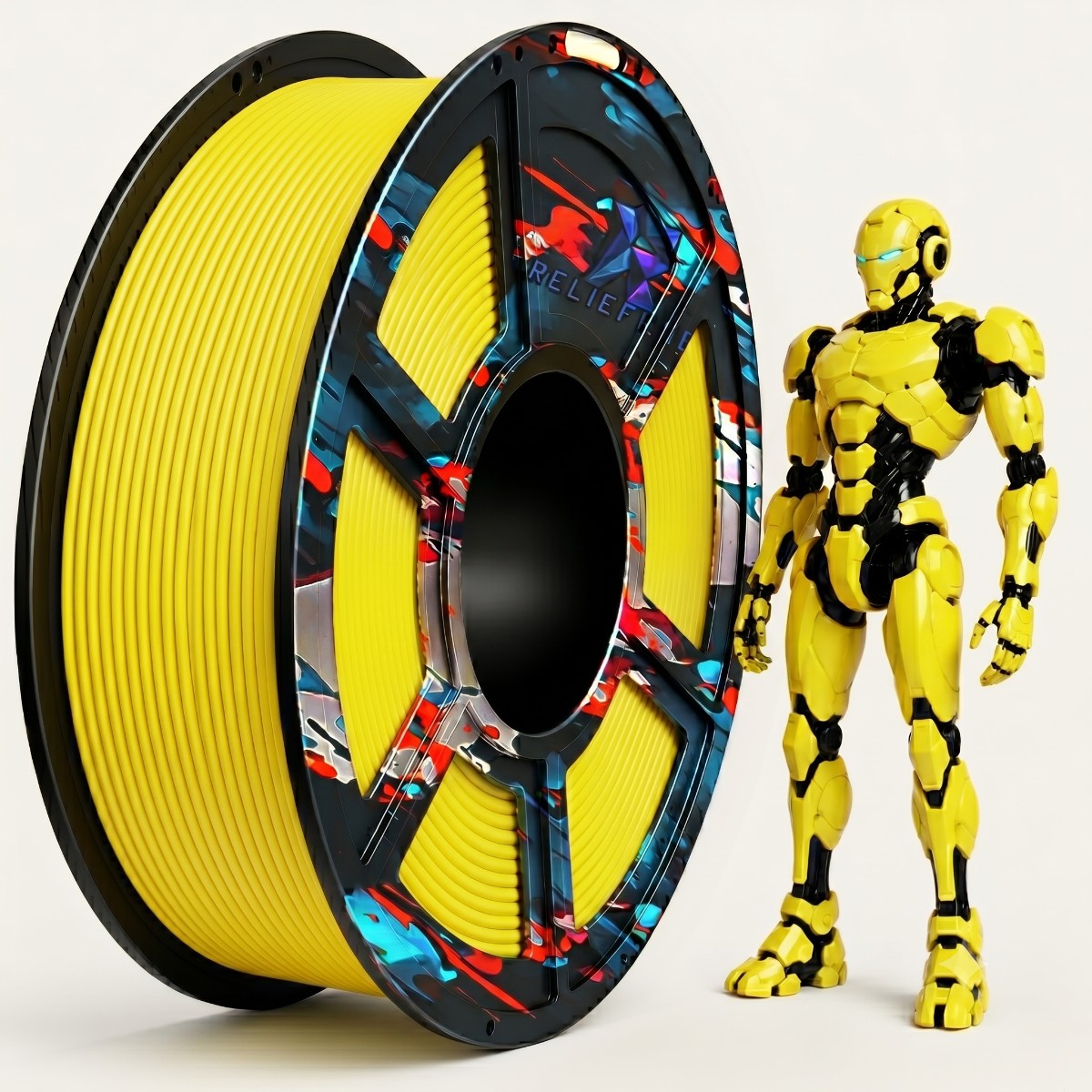

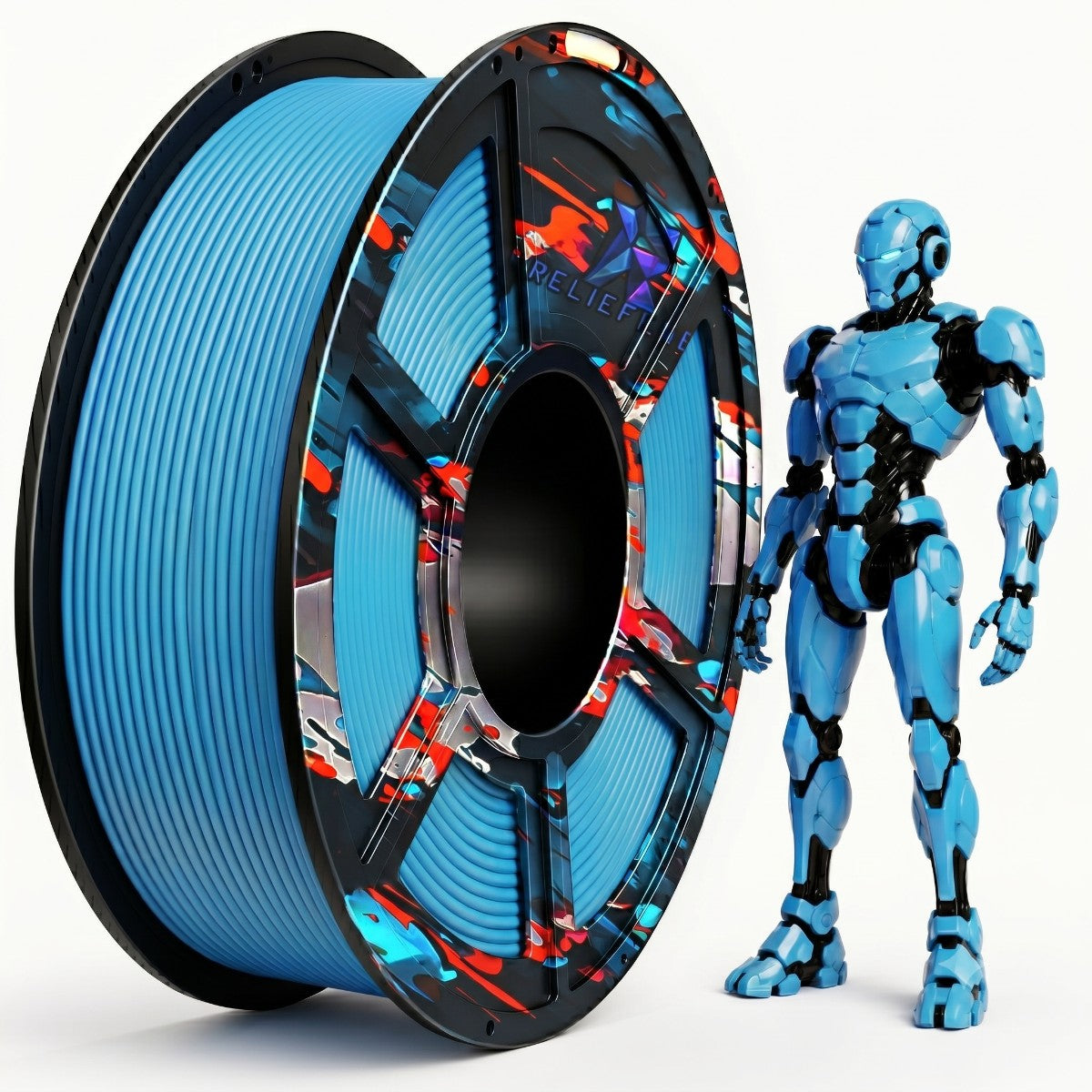

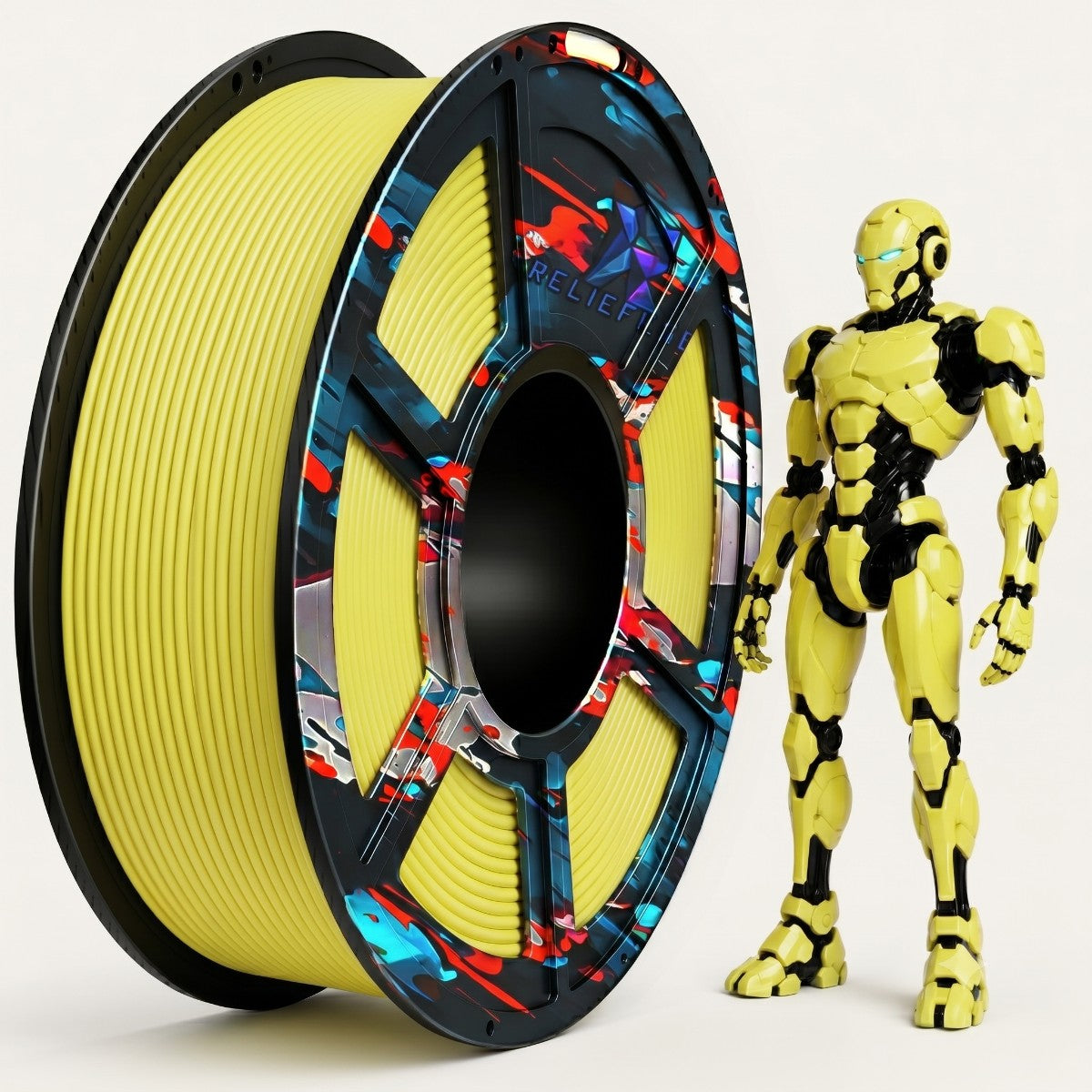

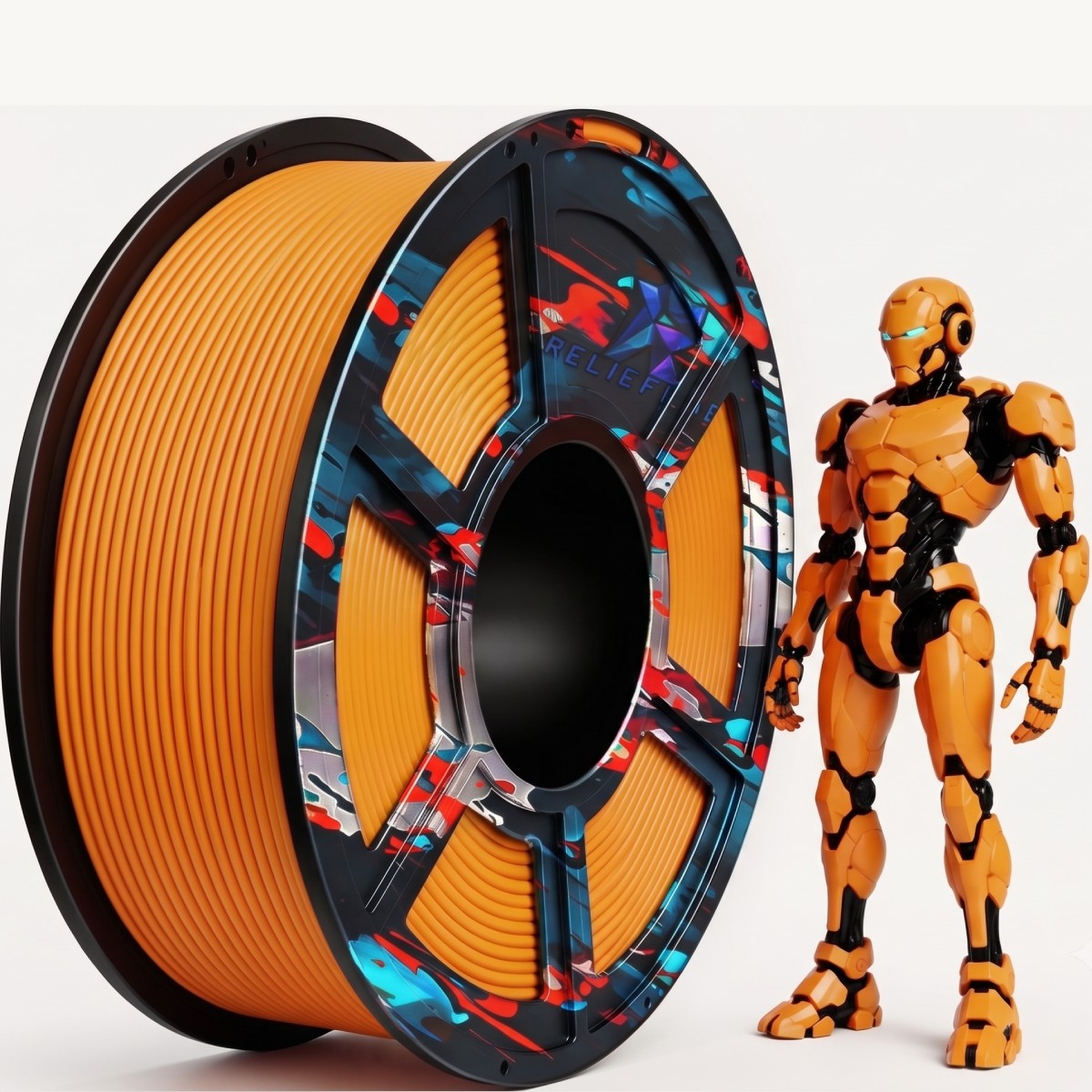

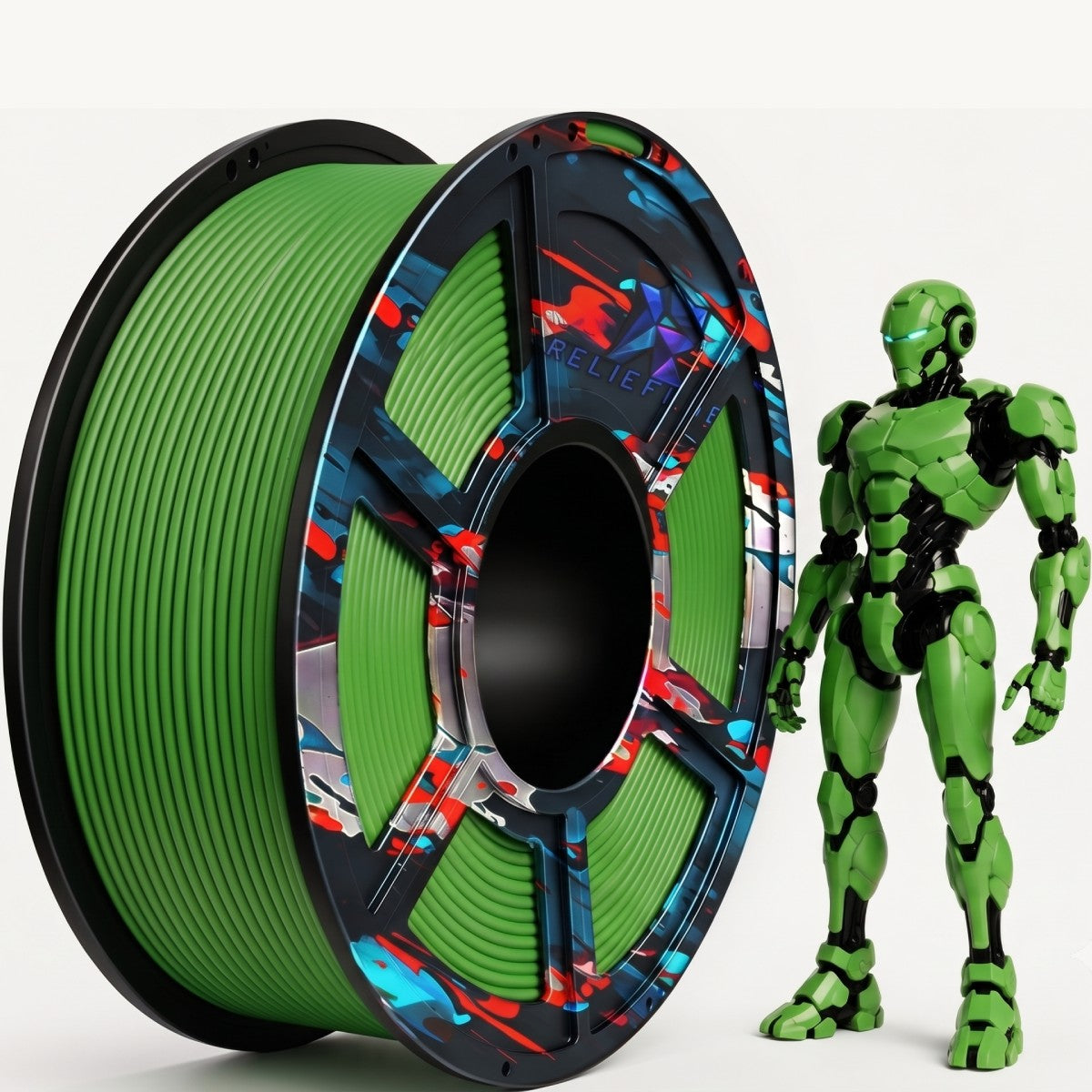

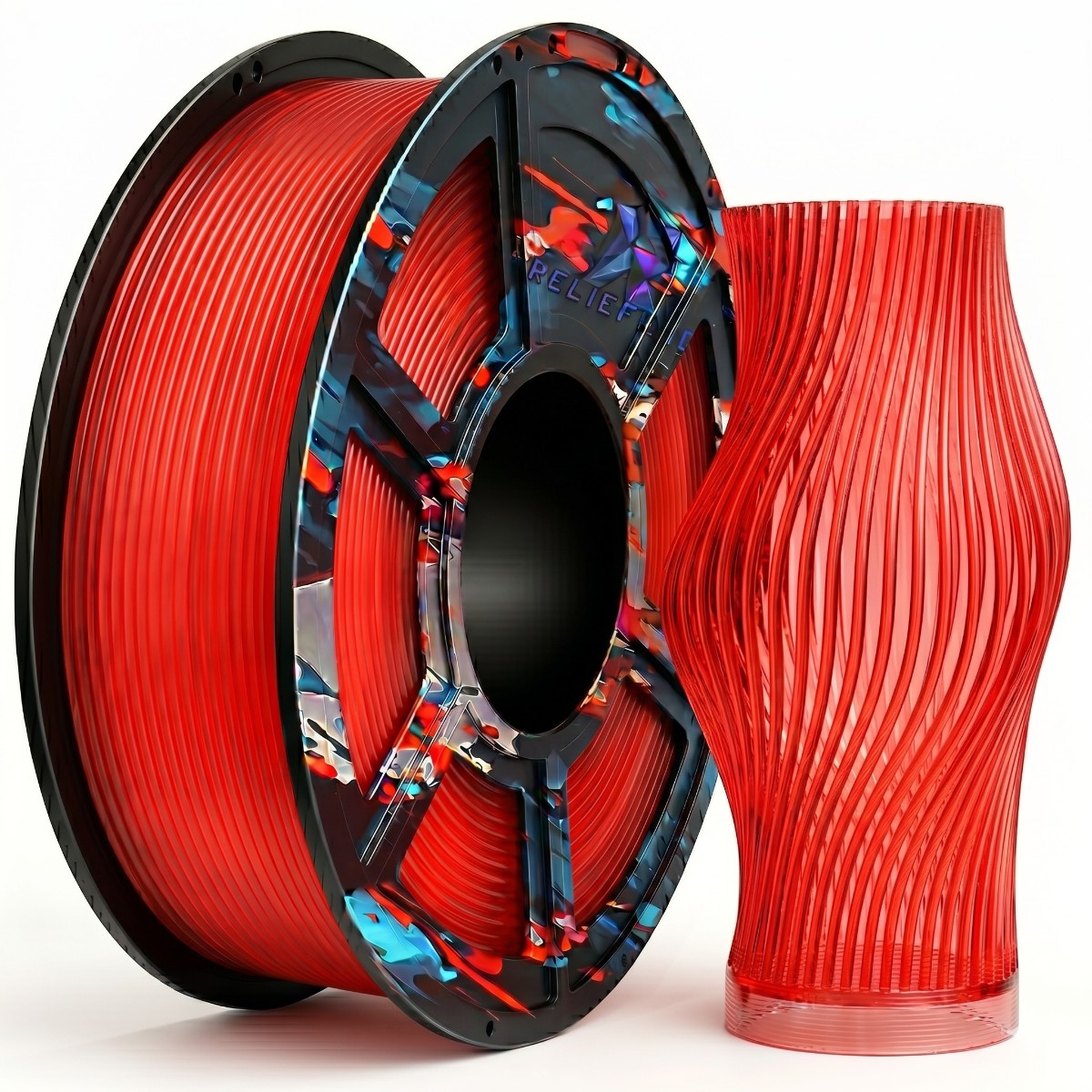

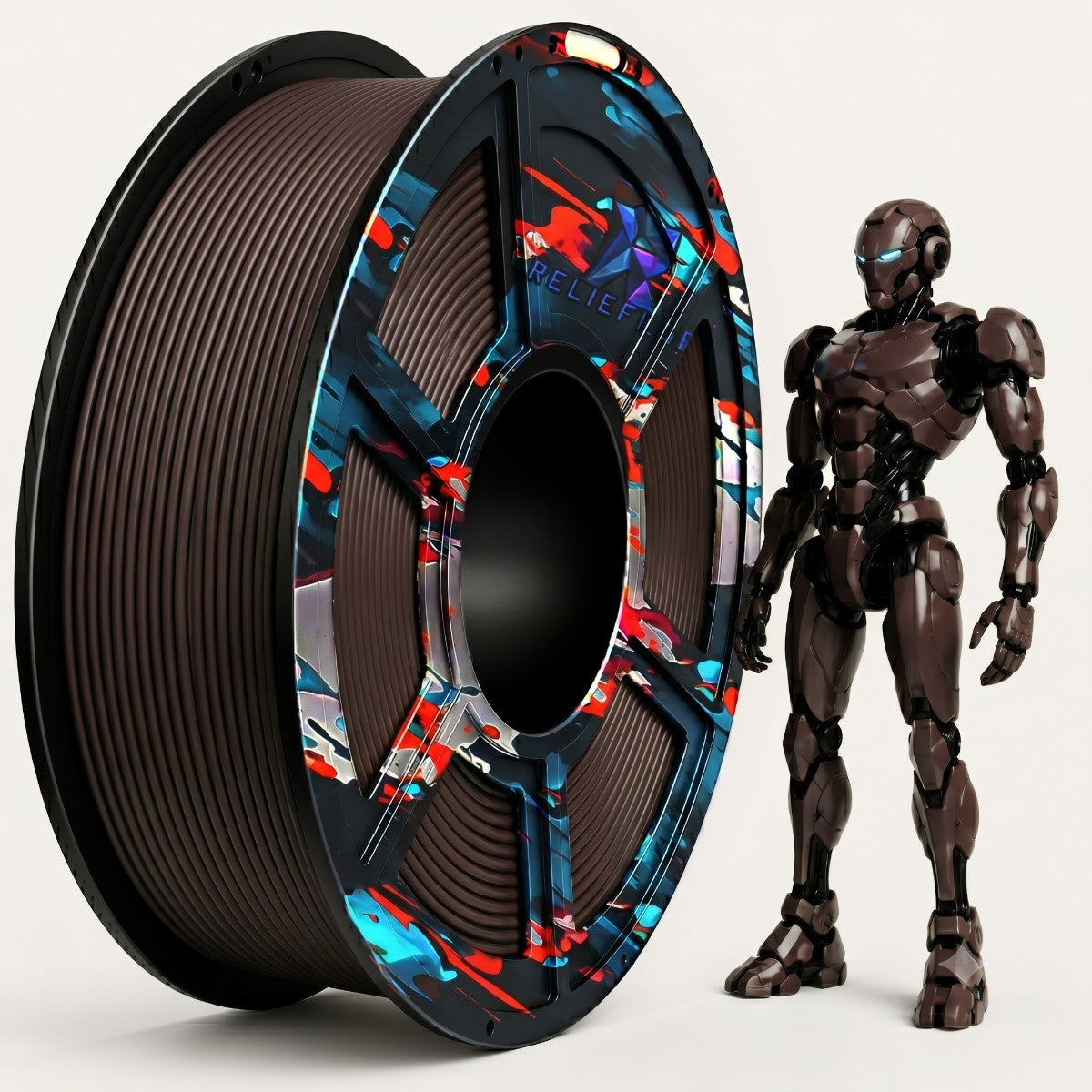

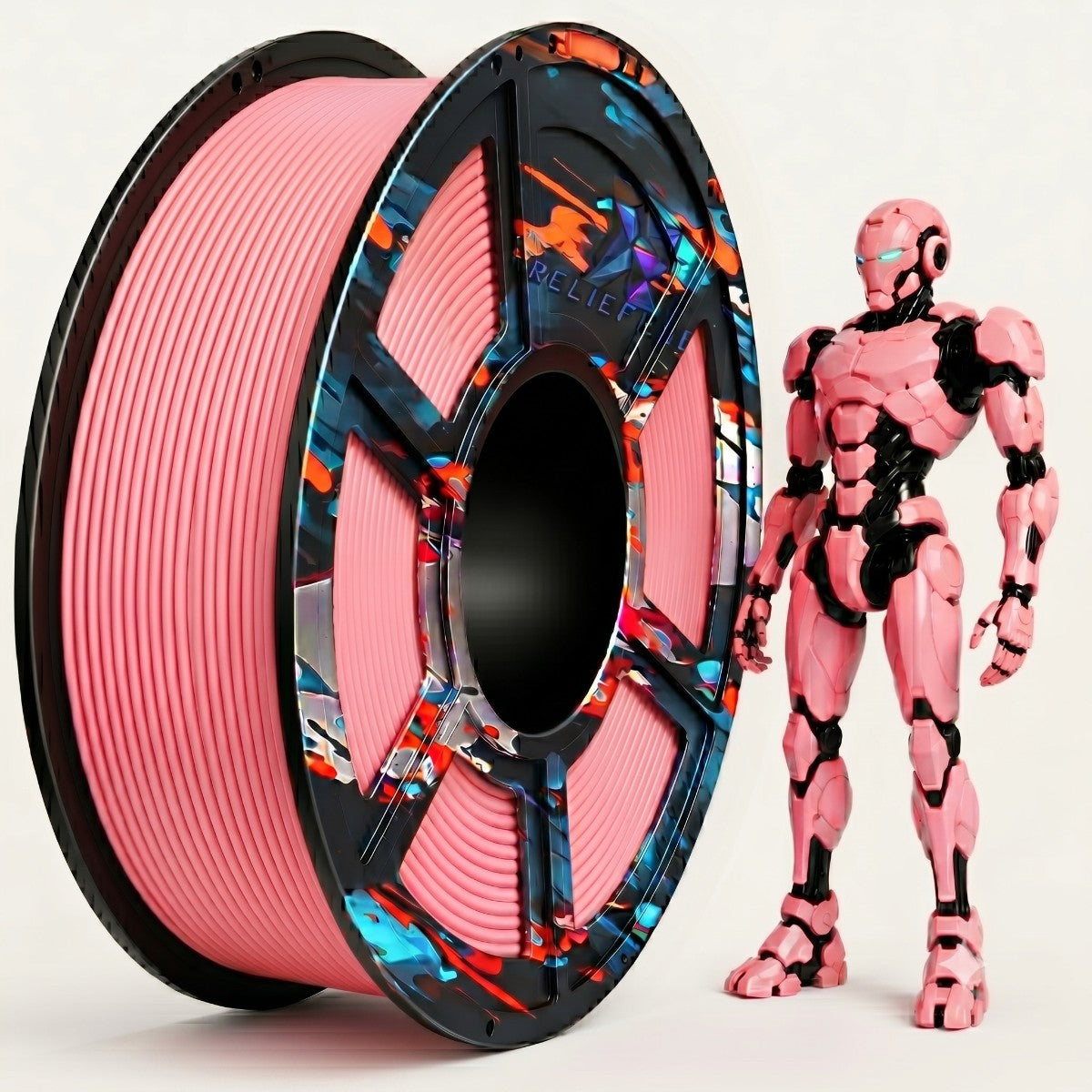

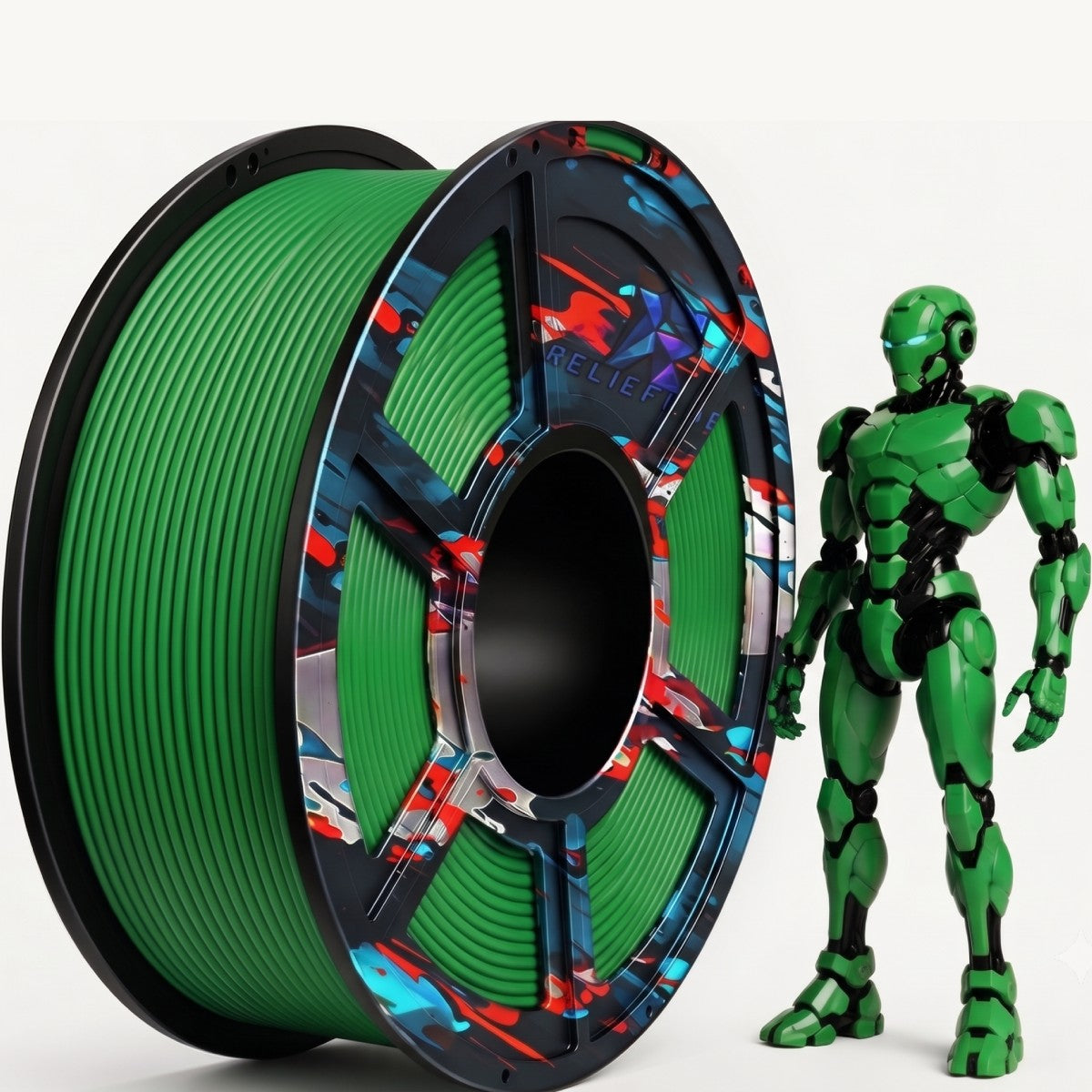

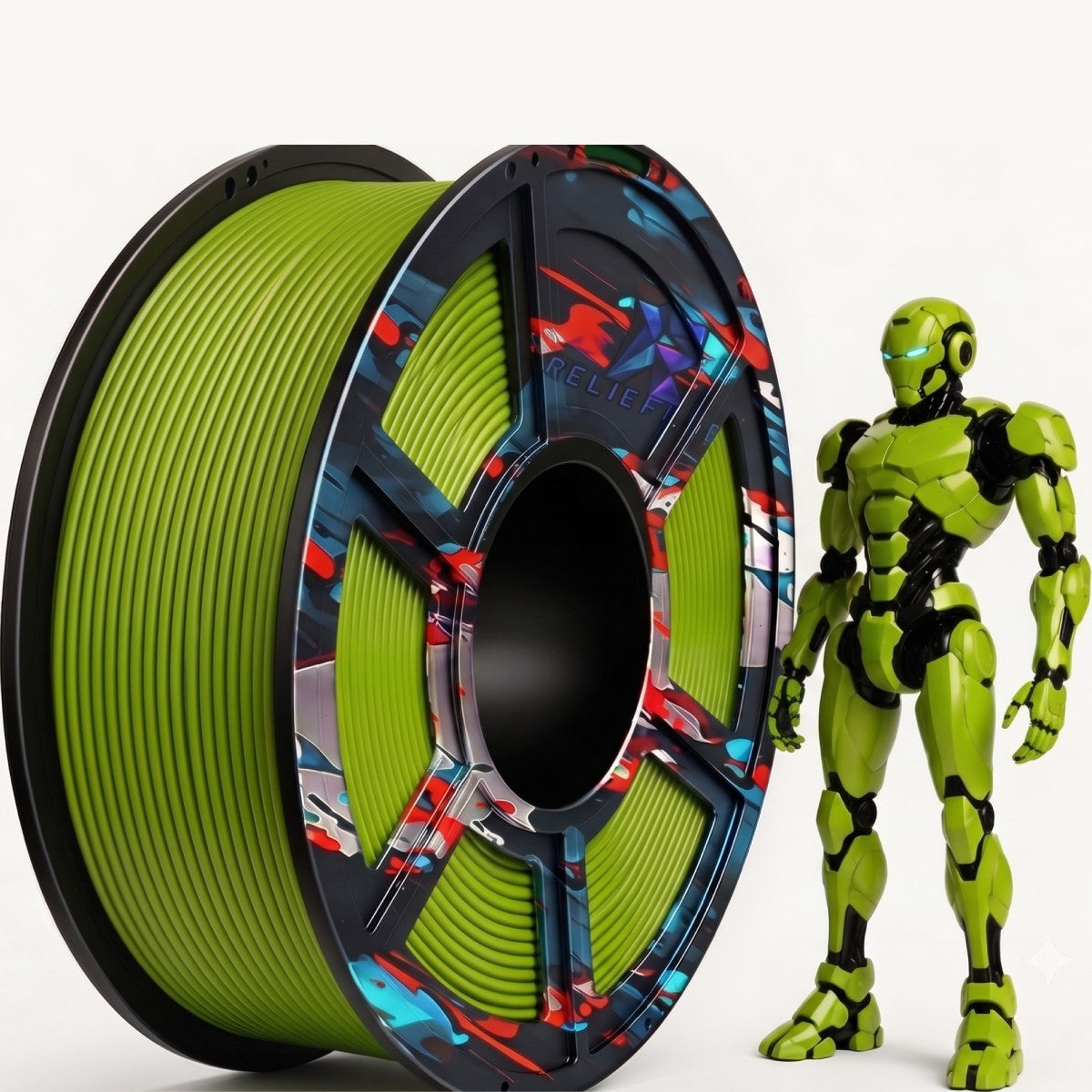

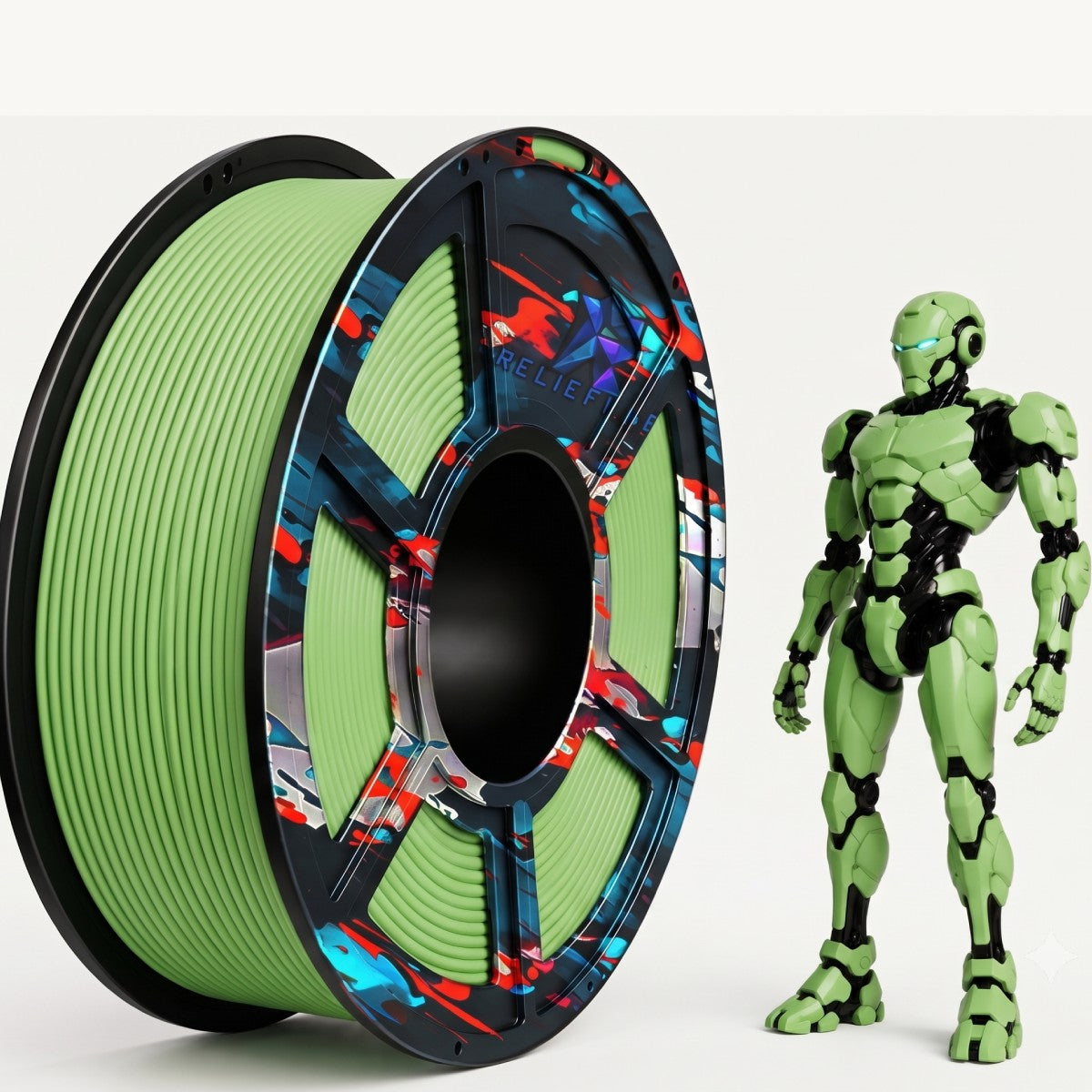

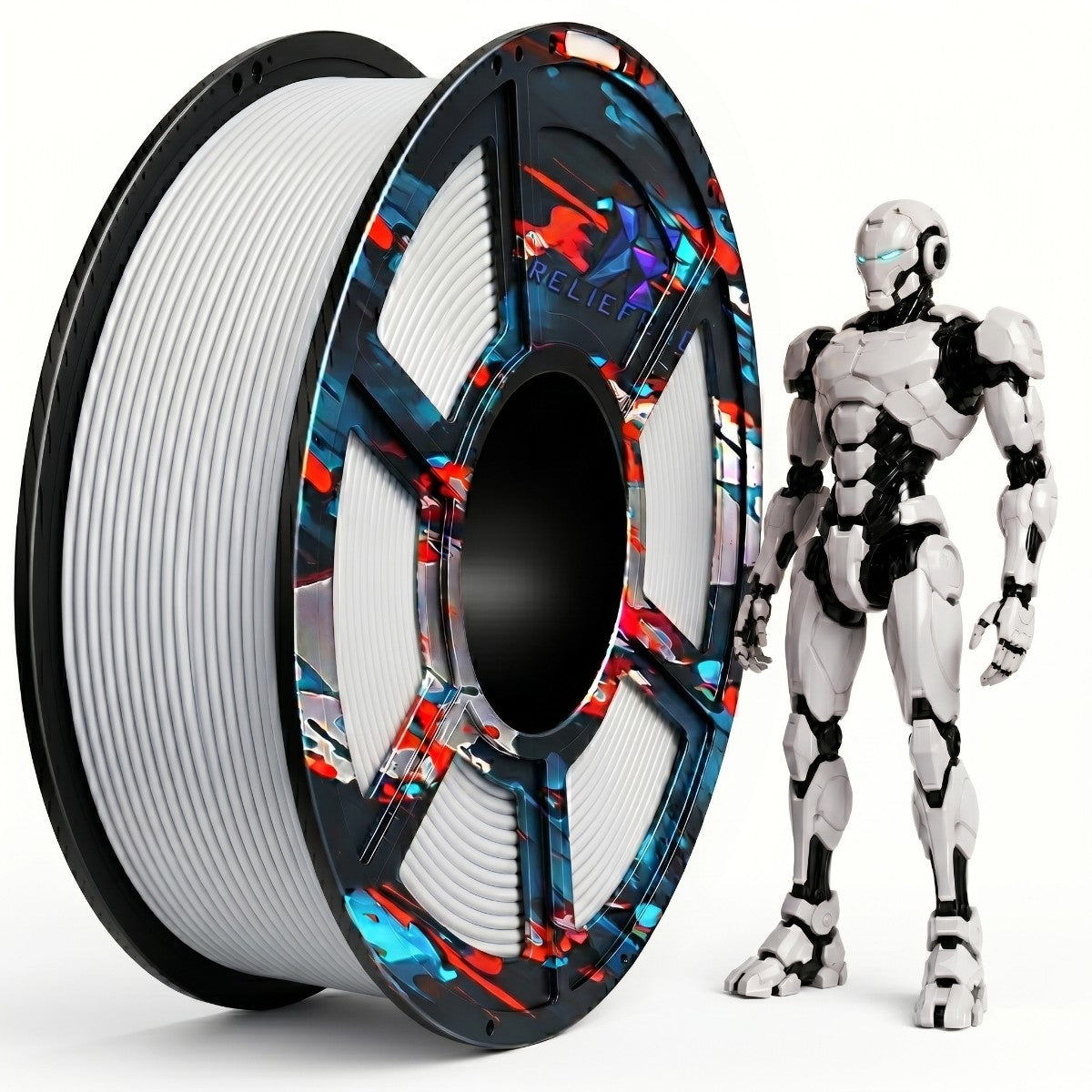

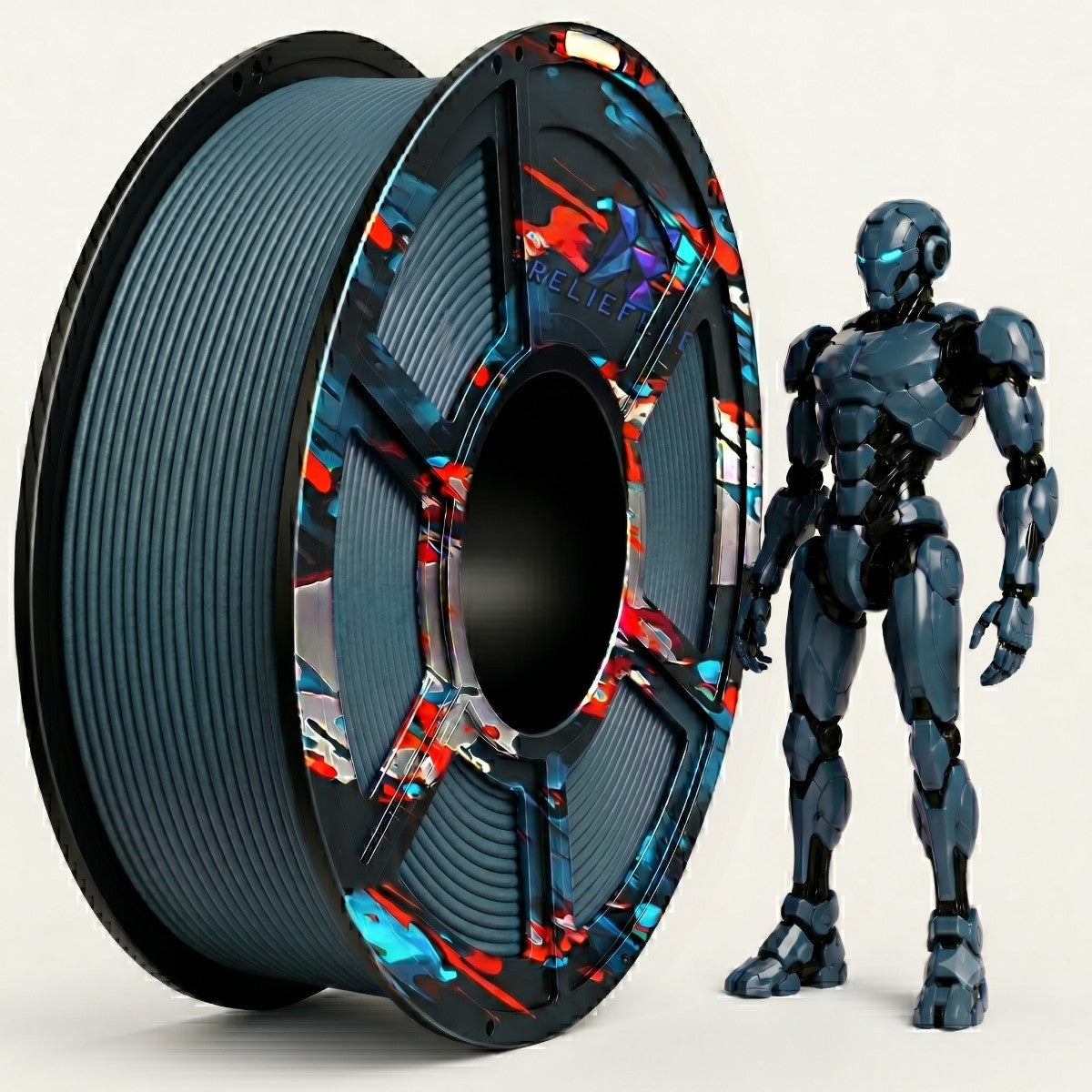

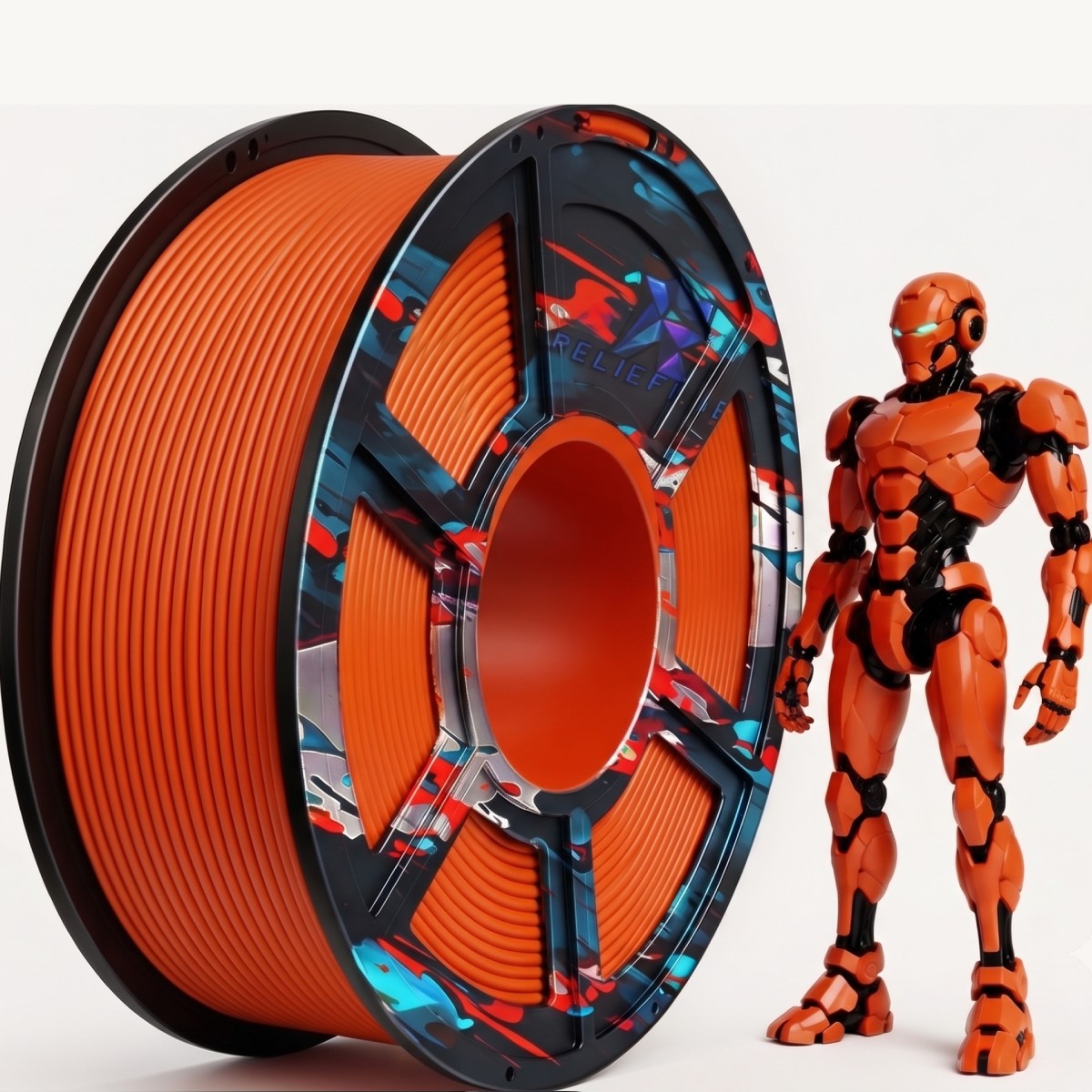

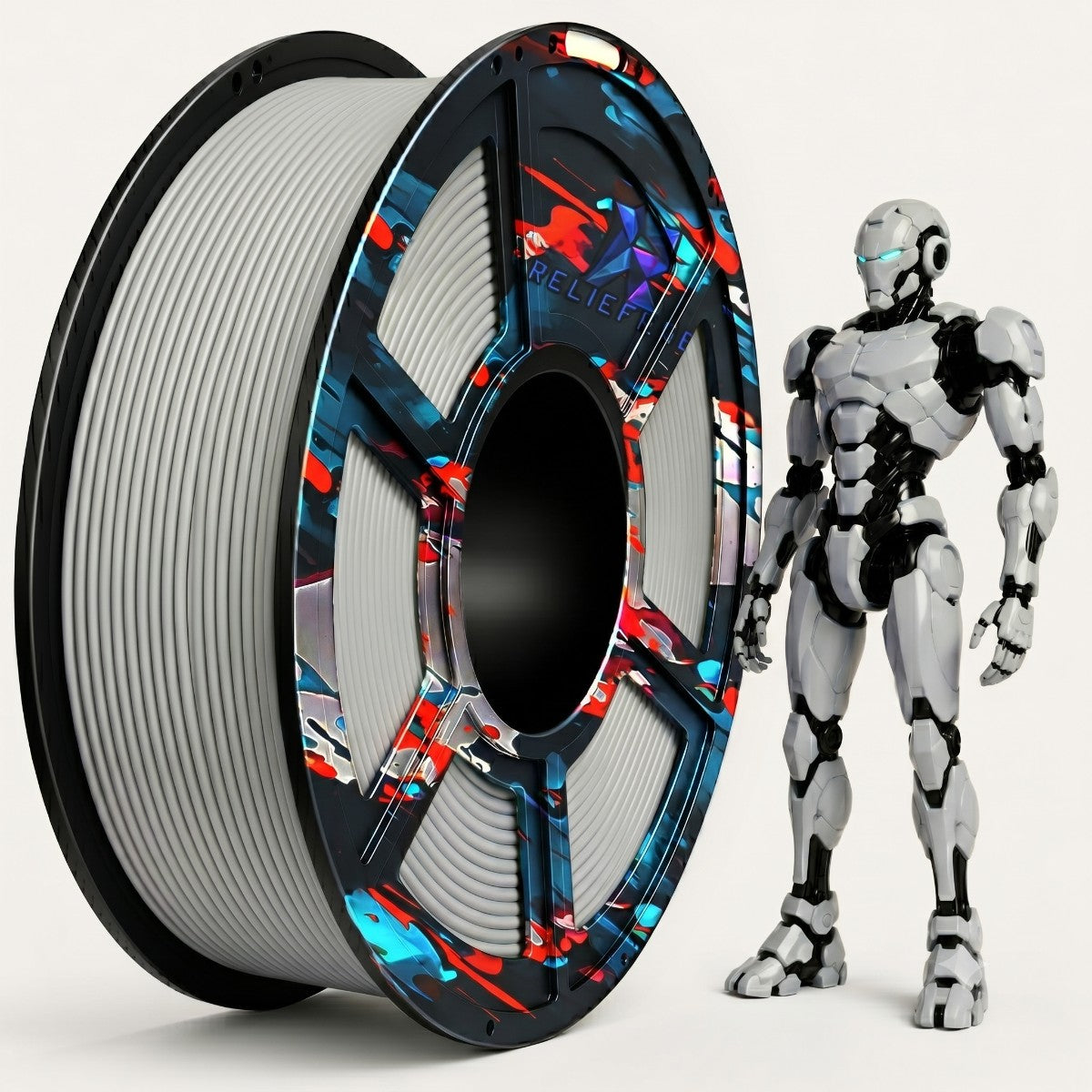

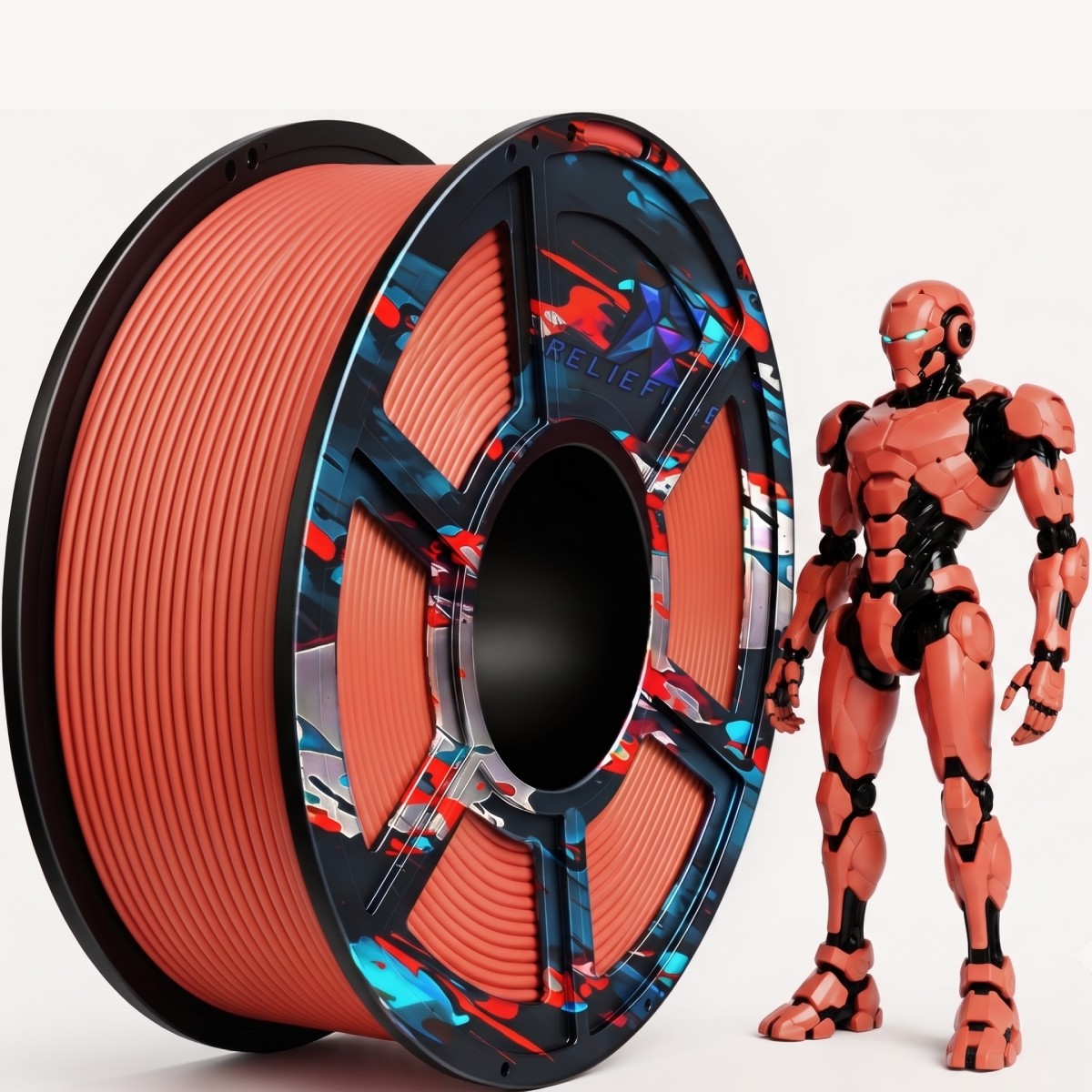

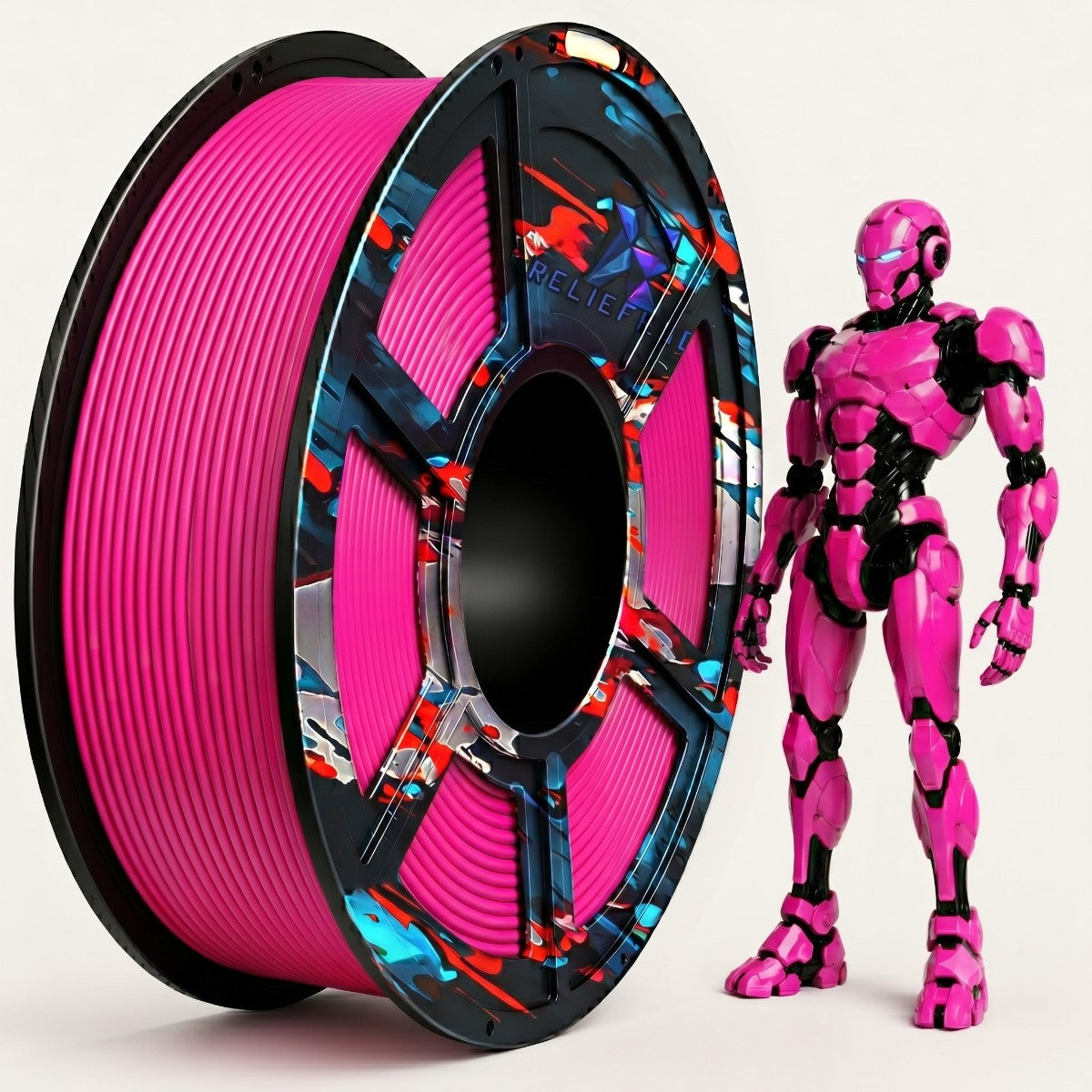

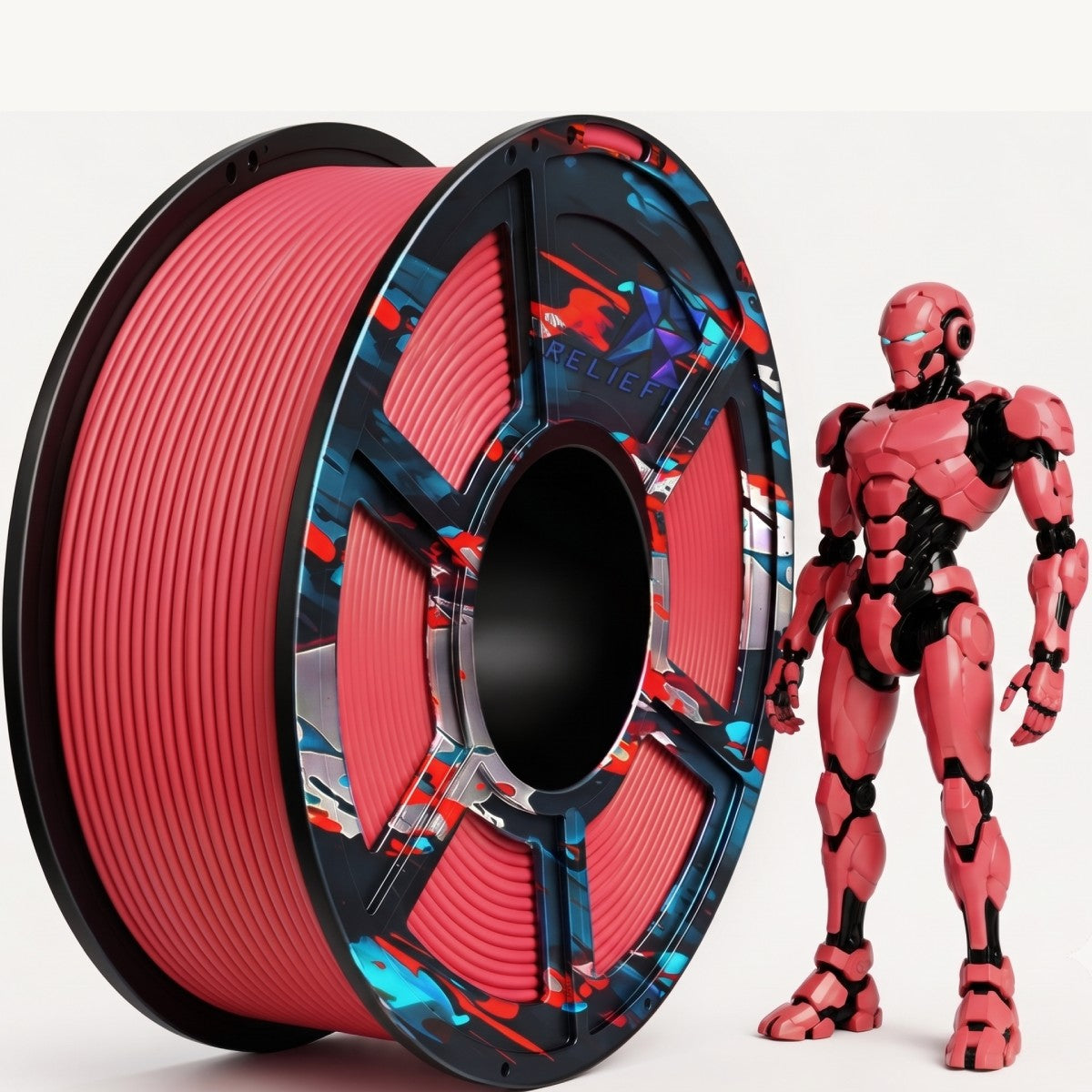

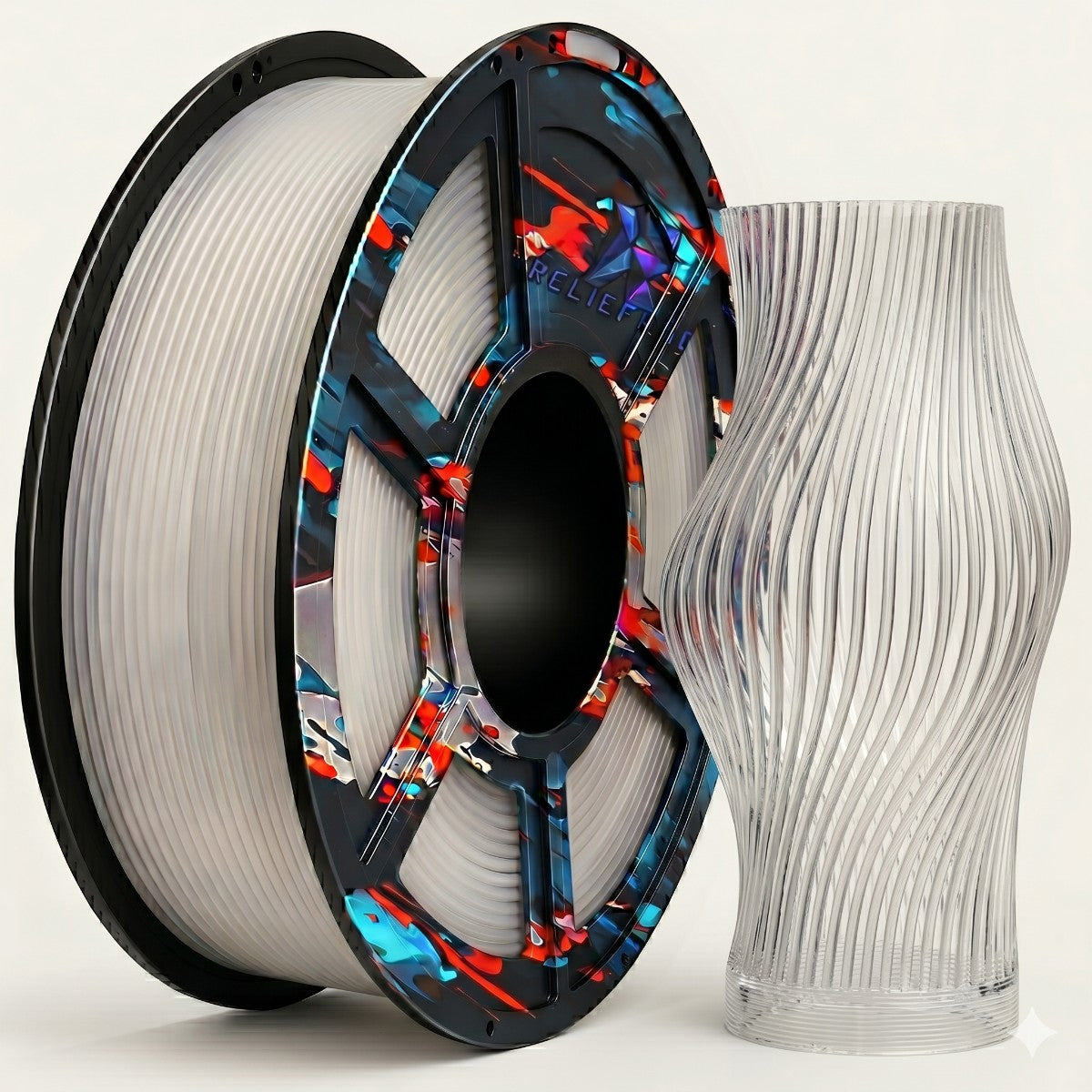

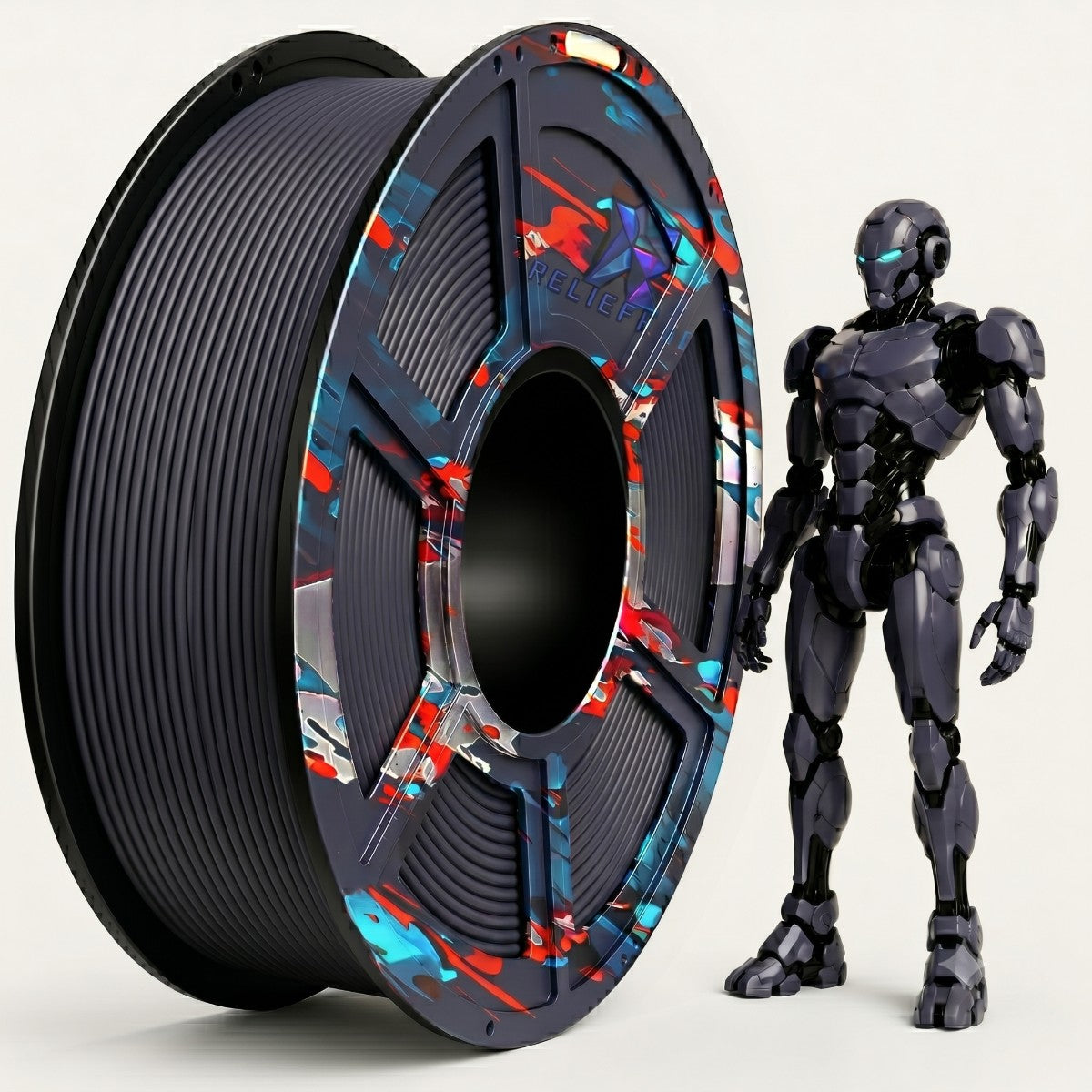

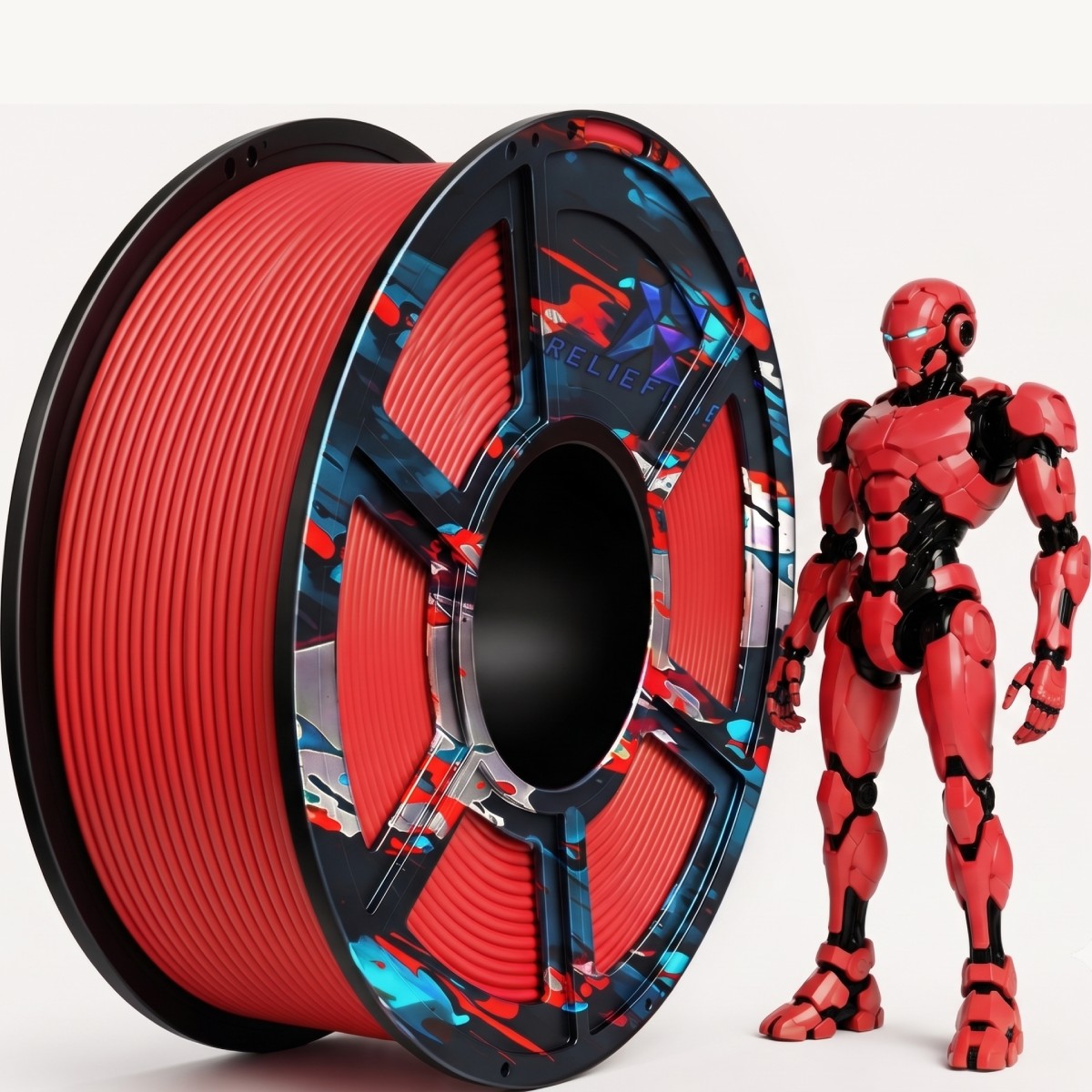

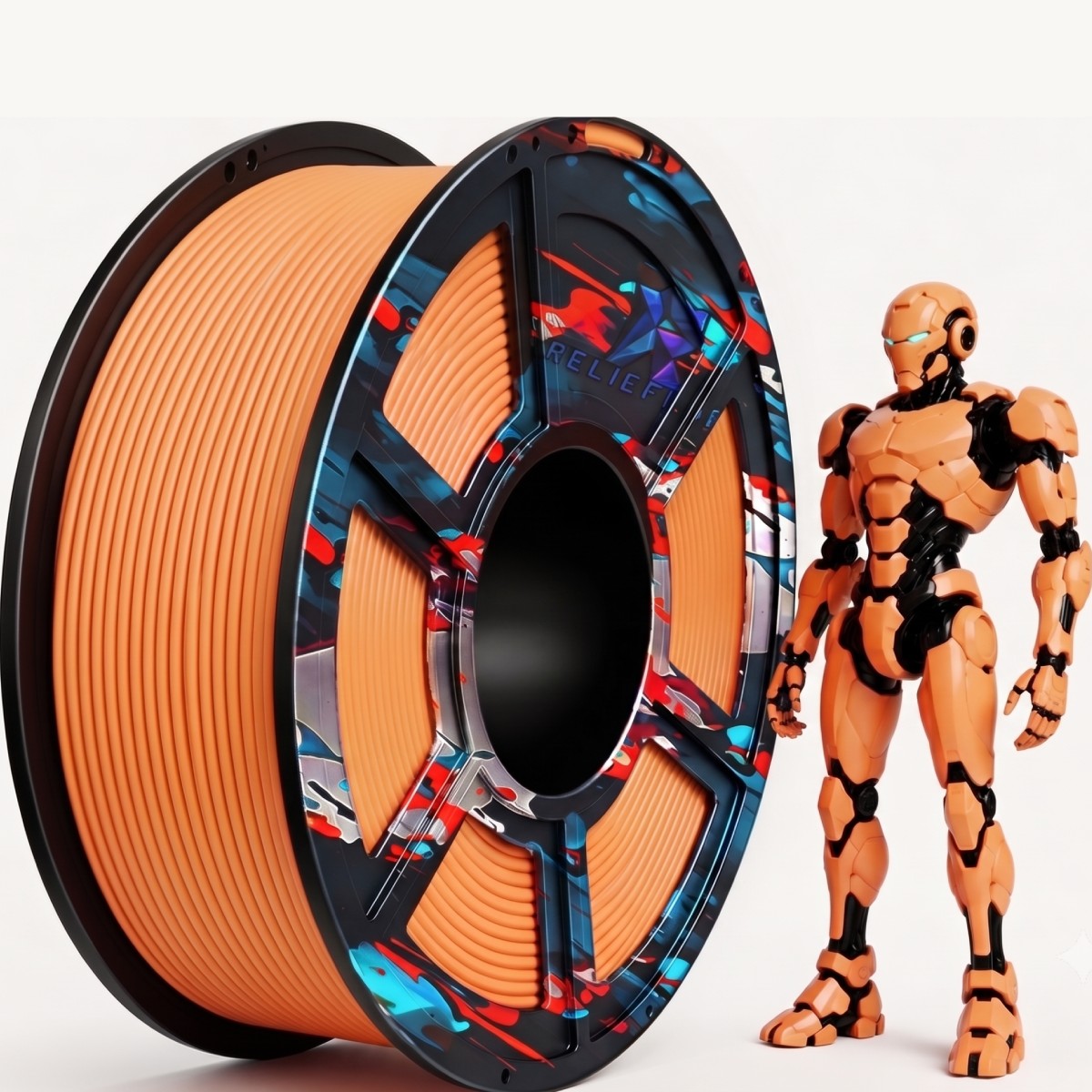

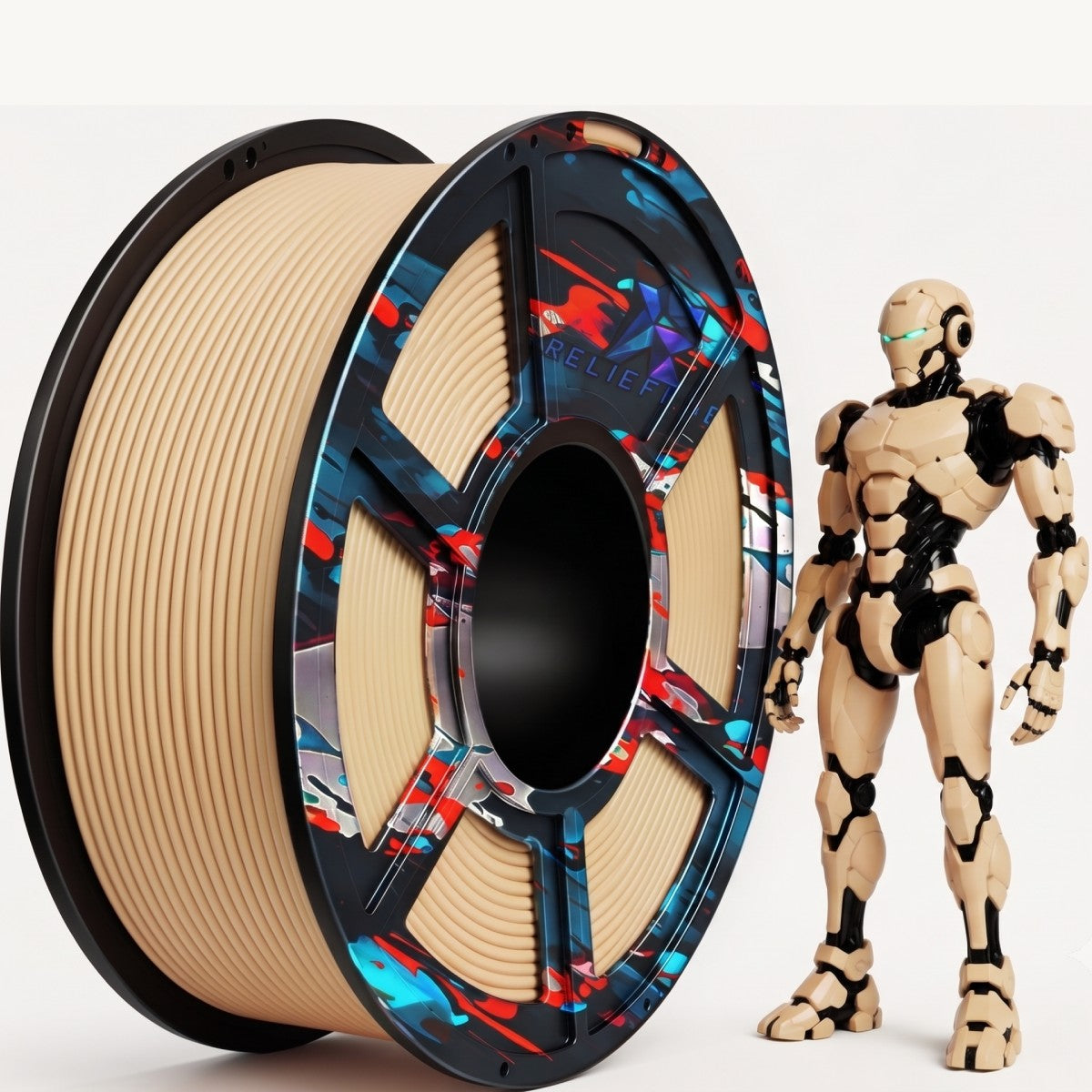

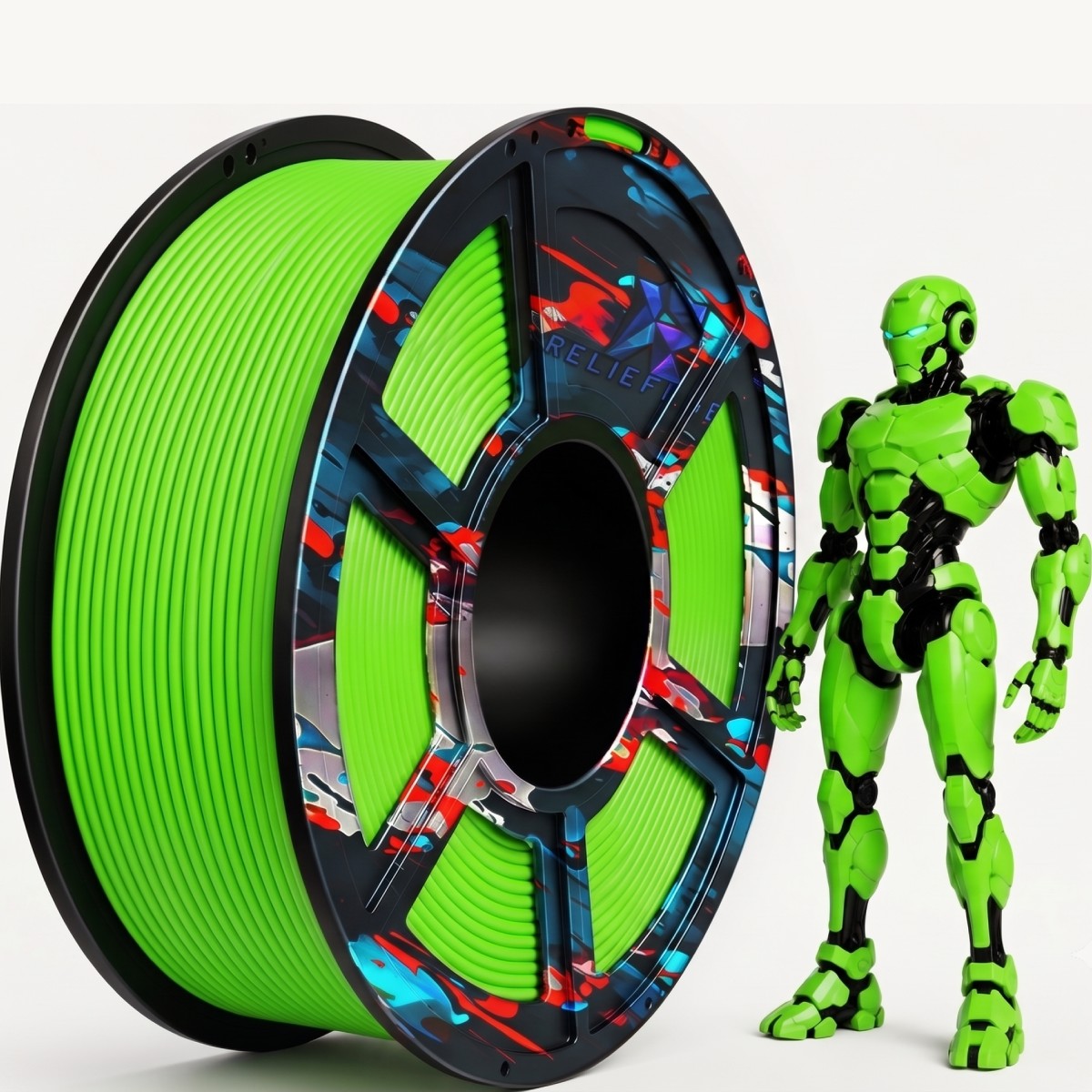

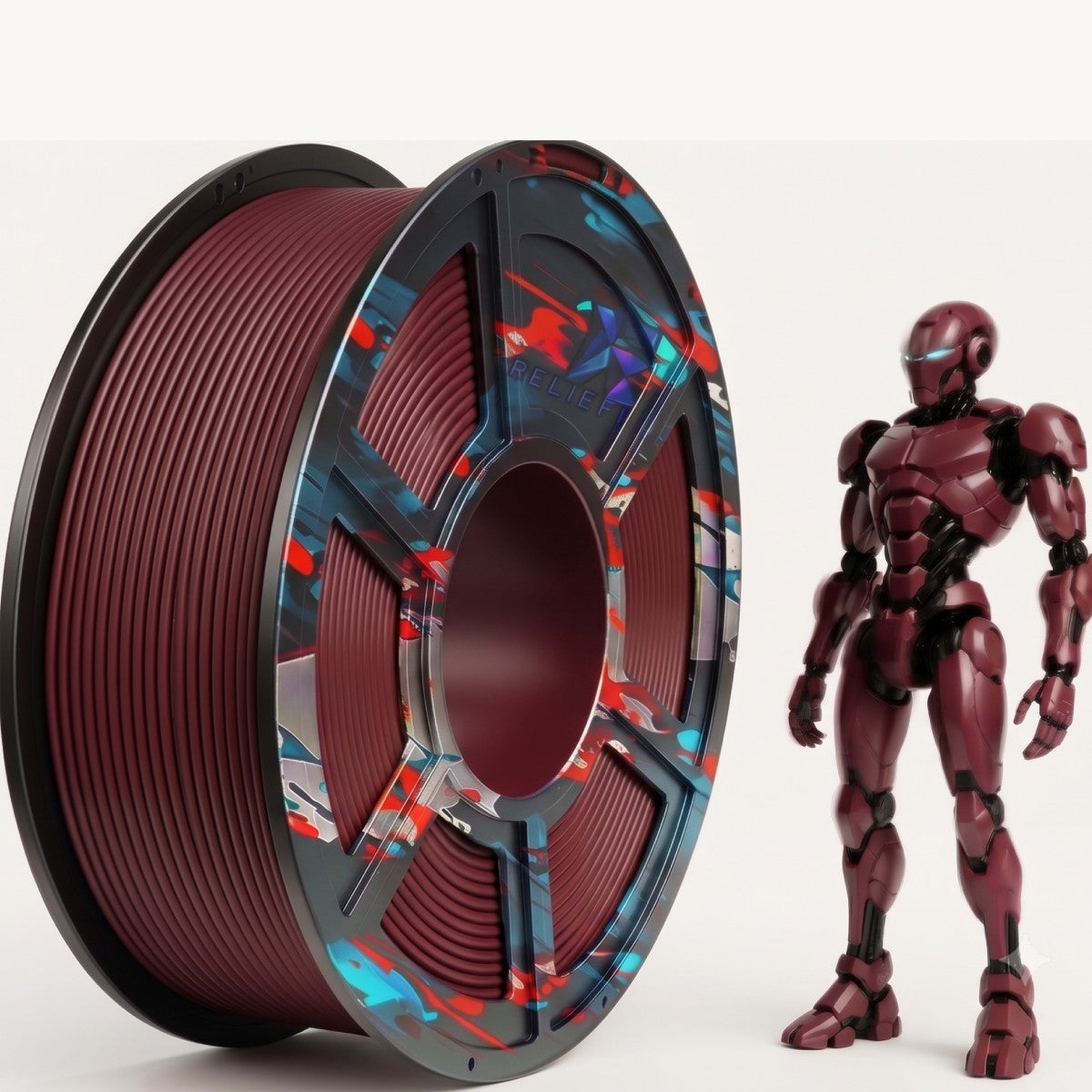

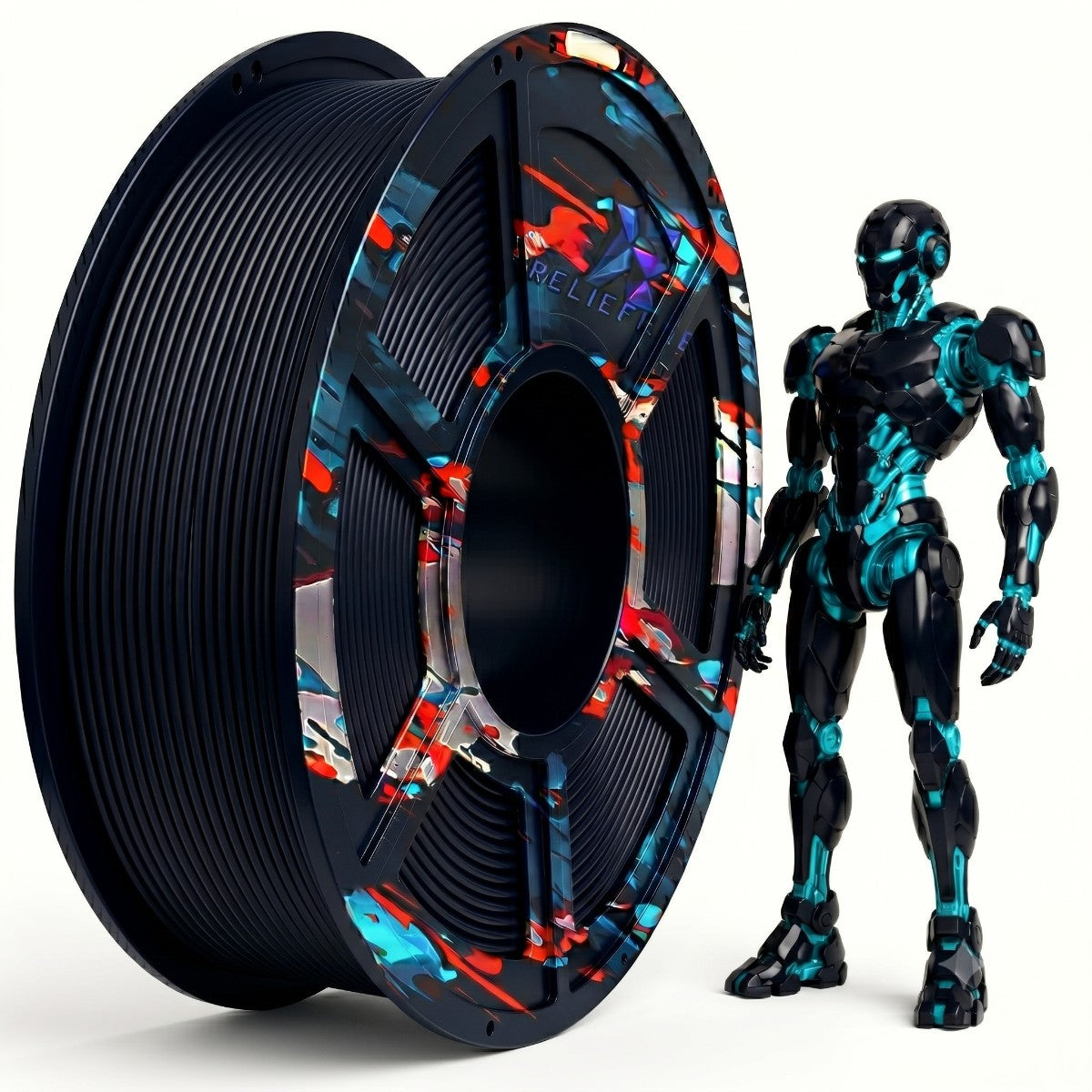

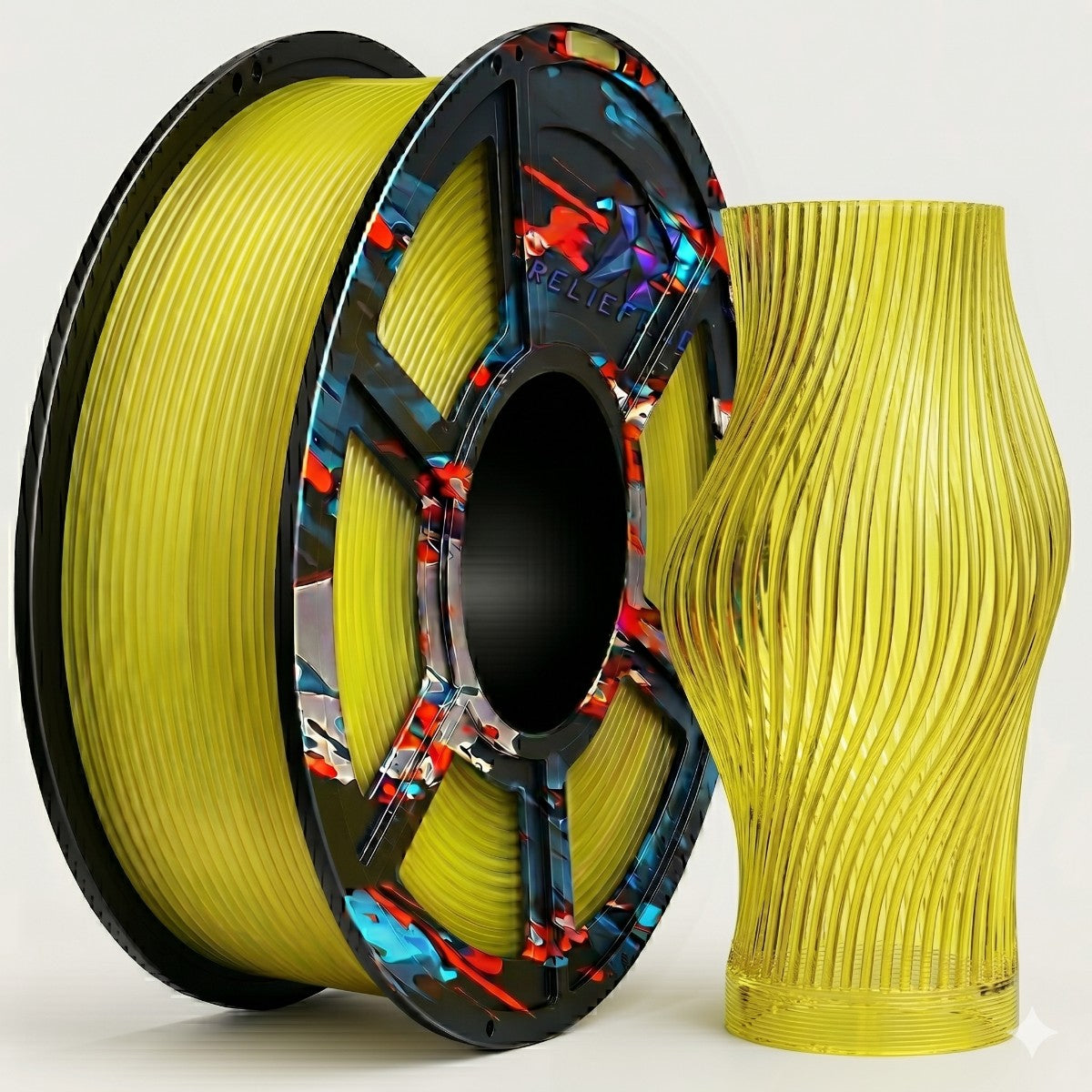

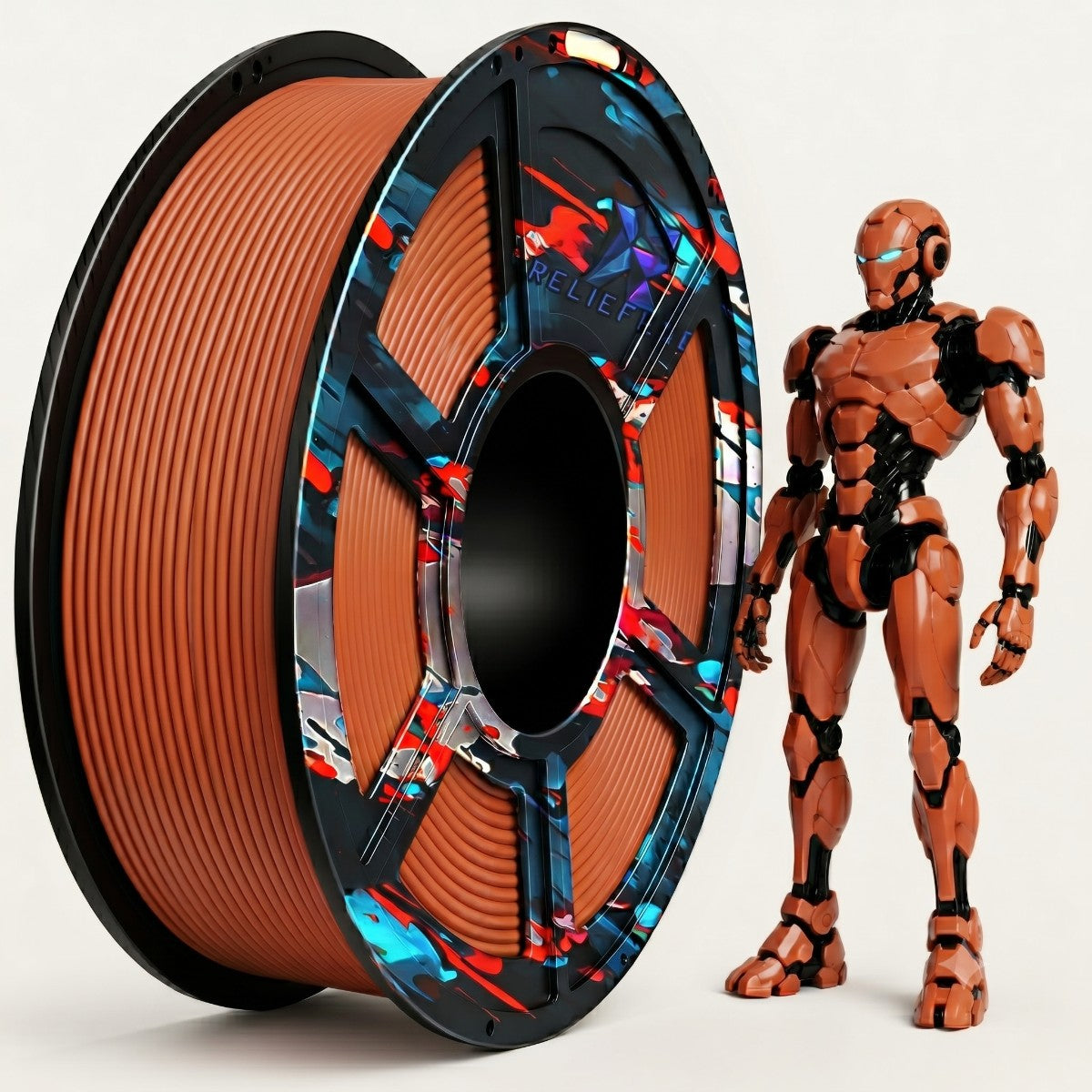

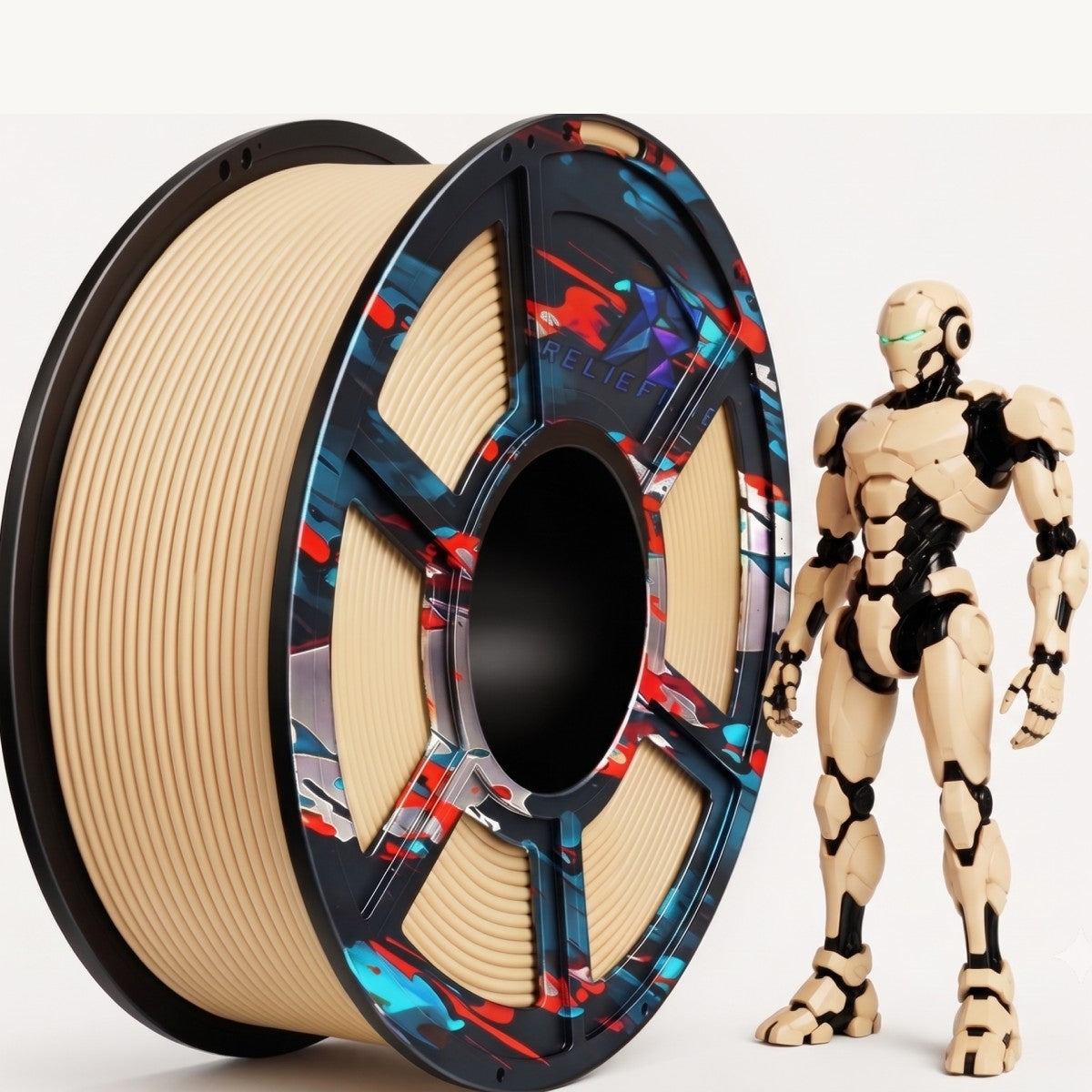

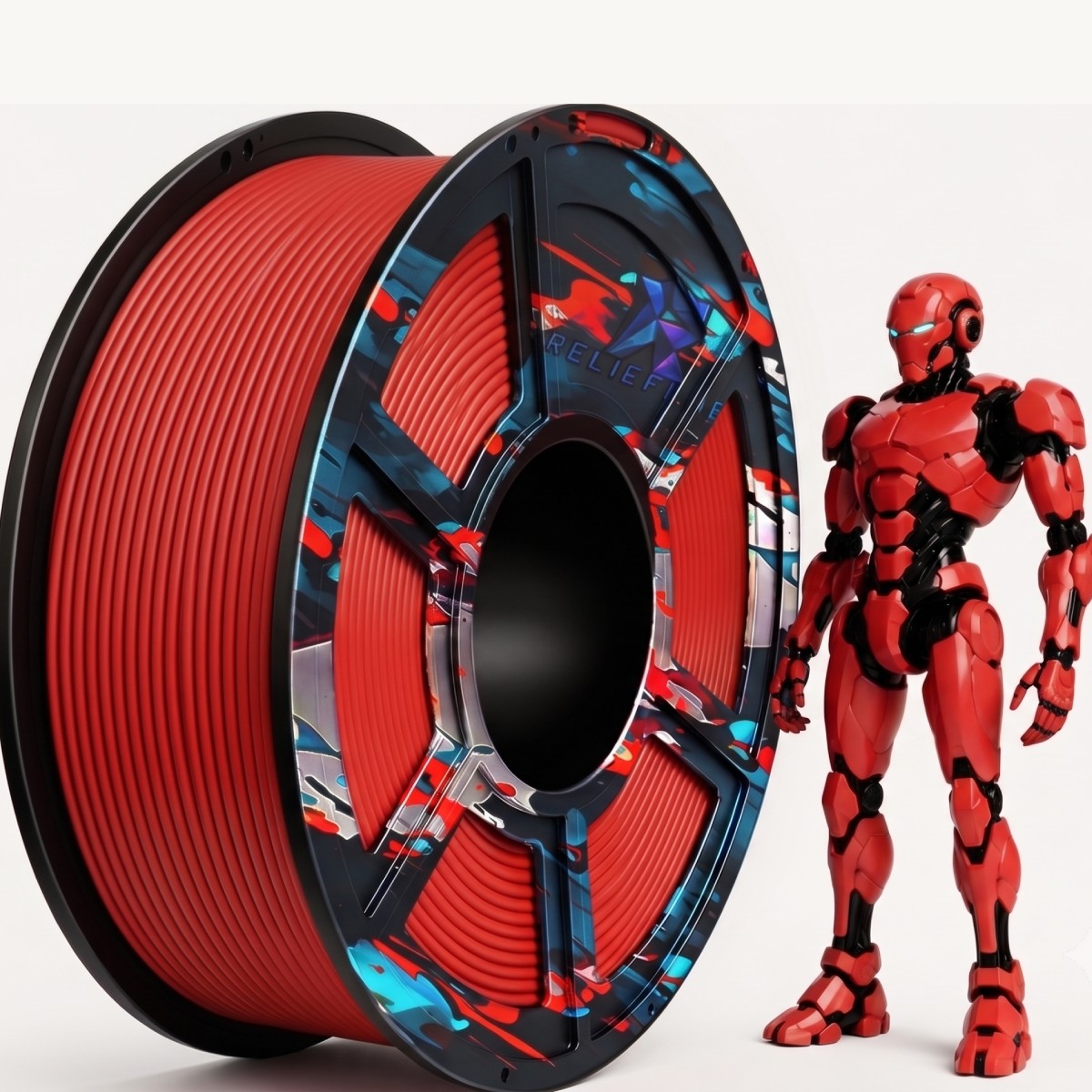

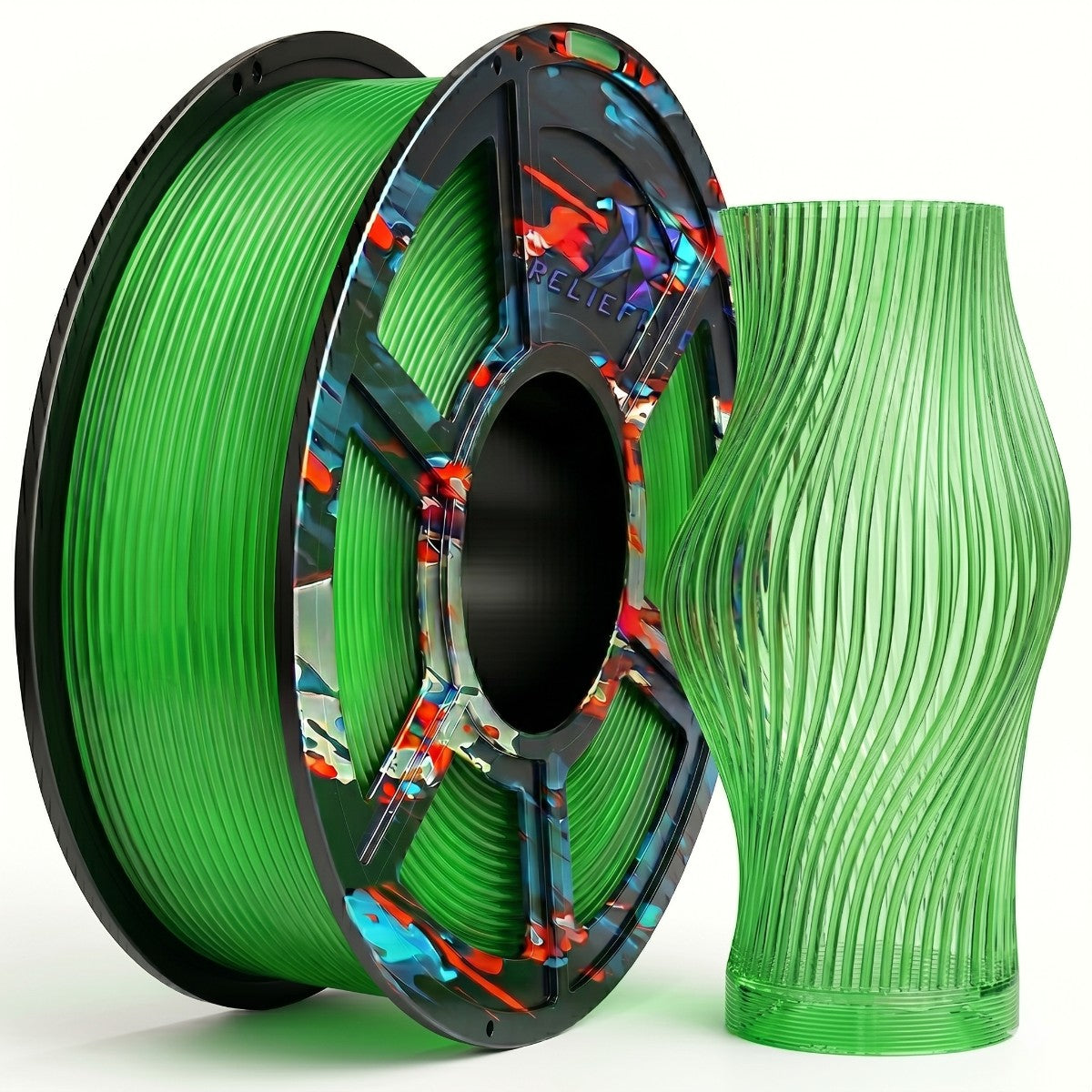

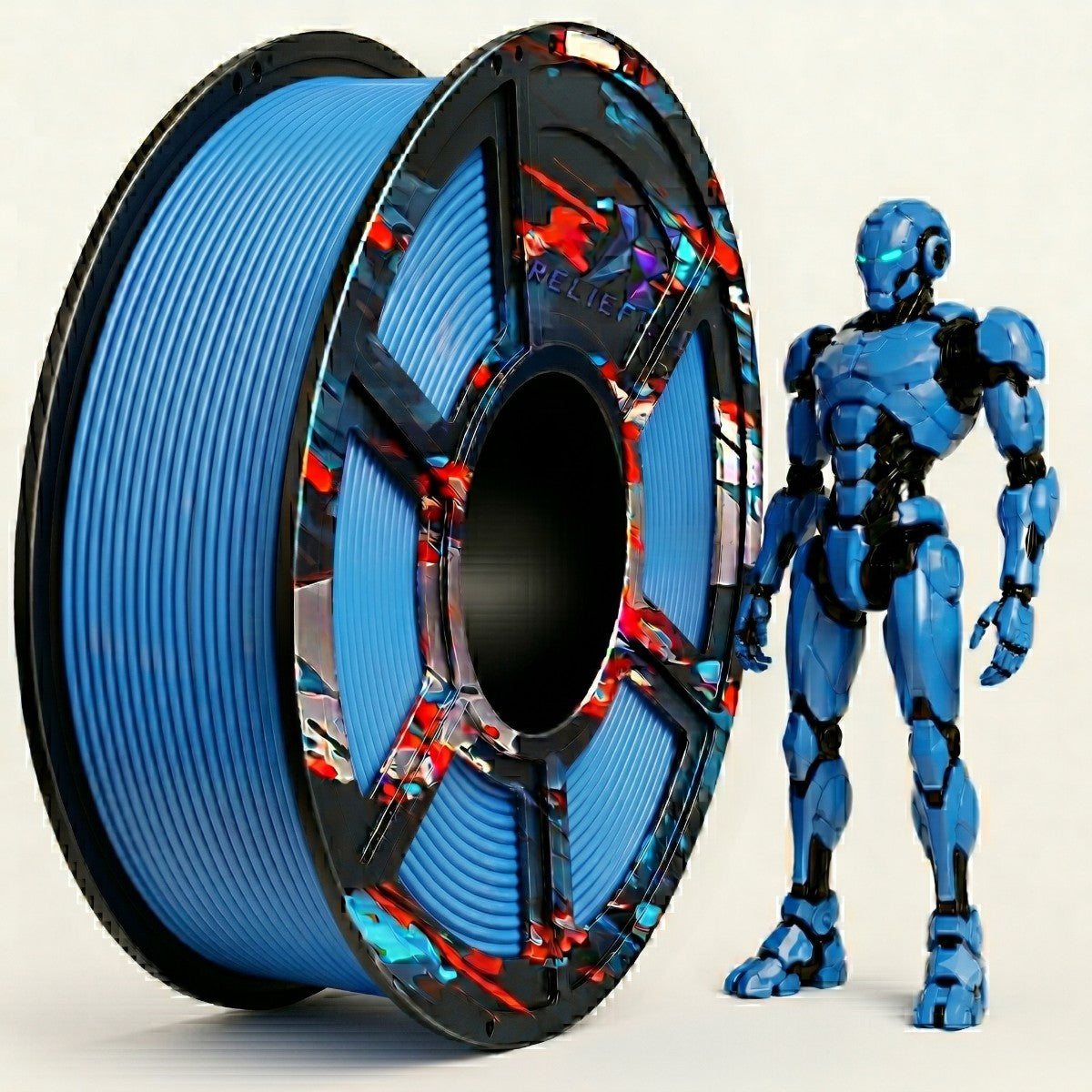

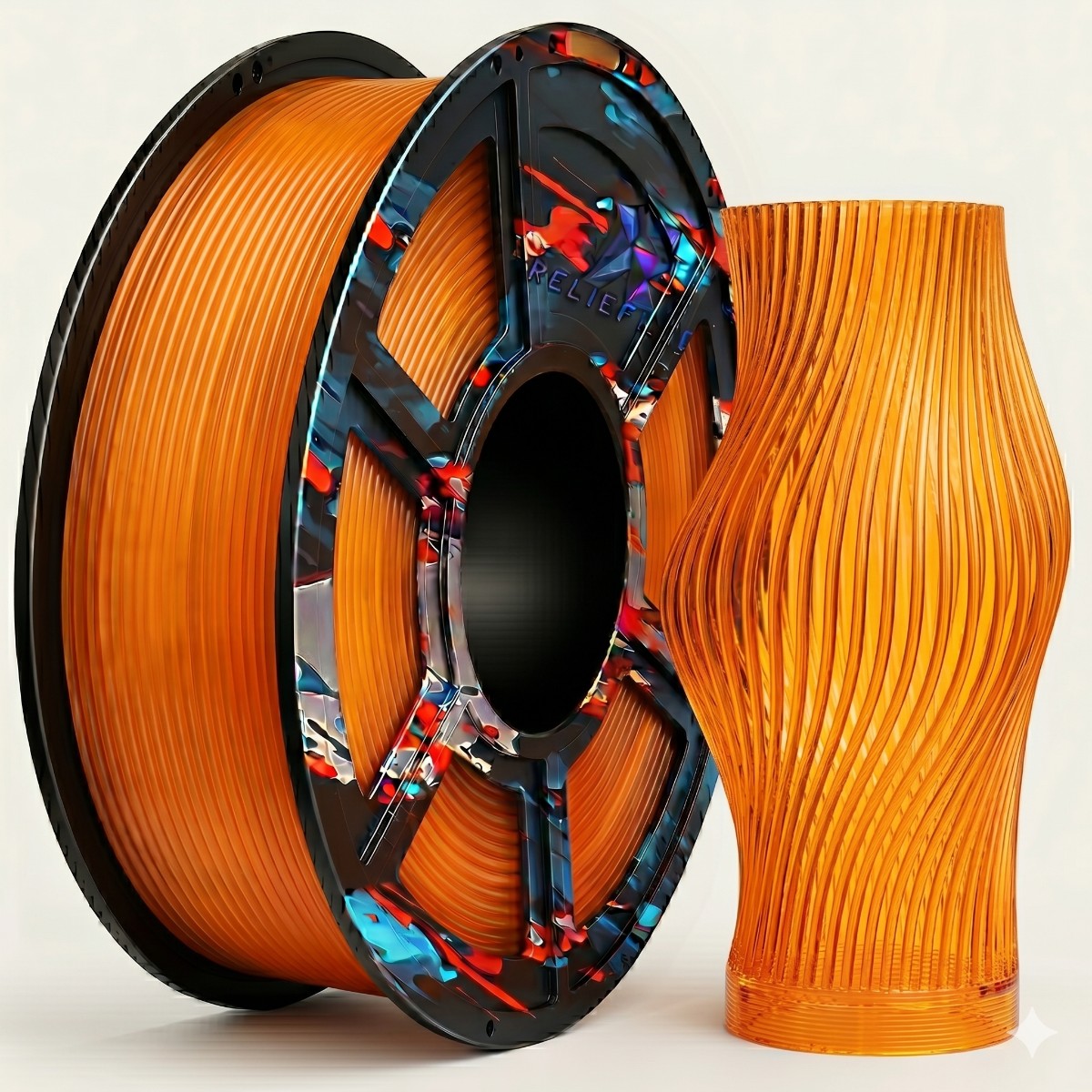

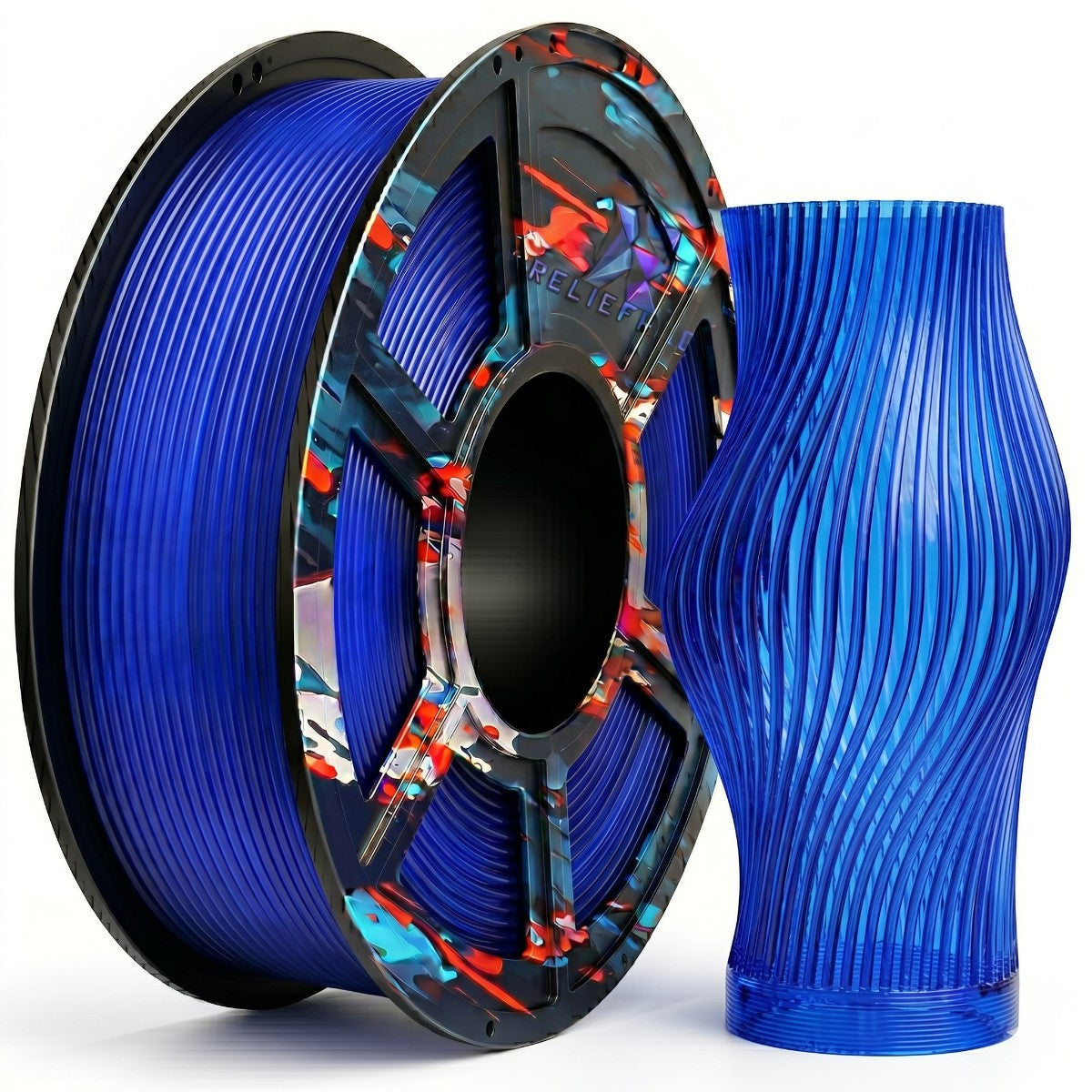

PLA

Polylactic acid, also known as PLA, is a thermoplastic monomer derived from renewable, organic sources such as corn starch or sugar cane. Using biomass resources makes PLA production different from most plastics, which are produced using fossil fuels through the distillation and polymerization of petroleum.

Despite the raw material differences, PLA can be produced using the same equipment as petrochemical plastics, making PLA manufacturing processes relatively cost efficient. PLA is the second most produced bioplastic (after thermoplastic starch) and has similar characteristics to polypropylene (PP), polyethylene (PE), or polystyrene (PS), as well as being biodegradeable.

Drying Settings: 50 °C, 8 H

Filament Diameter: 1.75 mm

Nozzle Temperature: 190 - 220 °C

Bed Temperature: 60 - 70 °C

Printing Speed: < 500 mm/s / 50-90+ mm/s

Density: 1.24 g/cm³

Heat Deflection Temperature: 60 °C

Vicat Softening Temperature: 60 °C

Melting Temperature: 155 °C

Water / moisture: 400 ppm

Stereochemical purity: 96% (L-isomer)

Tensile modulus: 3500 MPa

Tensile strength: 4 MPa

Elongation at break: ≤ 5%

Charpy notched impact, 23°C: ≤ 5kJj/M2

Heat deflection temp., amorphous2²: 60°C
